Paxton Supercharger Kit, Entry Level '64-'68 Mustang Small Block Ford
Paxton Supercharger Kit, Entry Level '64-'68 Mustang Small Block Ford
RHS / NOVI 1200SL / Satin
20 Verrall Crescent
20 Verrall Crescent
Berri SA 5343
Australia
PLEASE NOTE: 6 Week Lead Time on all Paxton Supercharger Kits. Kits are Imported via Air Freight ex Manufacturer.

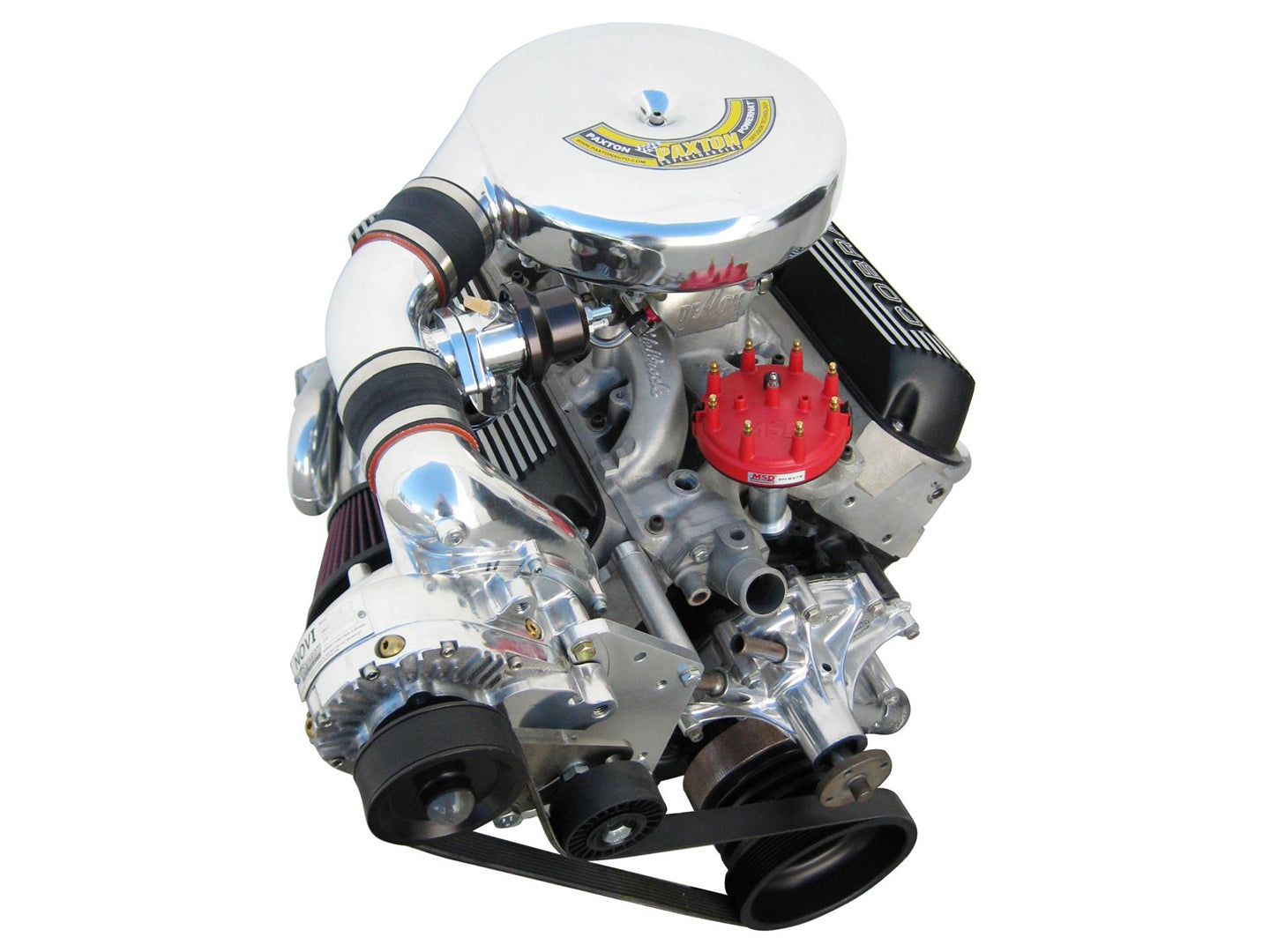

Add up to 75% more horsepower to your Small Block Ford at a low cost with a Paxton Entry Level Universal Supercharger Kit, featuring the Paxton PowerHat™ Carburettor Bonnet Assembly with diffusion technology.
- Designed for 1964-1968 small block Ford applications equipped with carburetted 260-302ci engines.
- This kit requires the installer to supply a high volume boost referenced fuel pump and properly jetted Holley 4150-type carburetor unit (with mechanical secondaries).
- The kit allows retention of power steering and the alternator (generators must be replaced).
- 1967-68 Mustangs may require relocation of the battery
- Horsepower gains (depending on boost levels, engine volumetric efficiency etc.): 30-75%+
- Supplied pulley ratio will produce approximately 6-8 psi at 5500 rpm on a mildly modified 289” engine
- Installation time: 4-10 hours depending on application
- CARB E.O. numbers do not apply to this kit
- The supplied supercharger discharge tube is intended to fit a wide range of manifold heights; however, applications equipped with “high-rise” intake manifolds may require minor adjustment/trimming for optimum fit.
Included Components and Features
- Novi 1200SL supercharger with 3.7” 8-rib pulley (CW rotation, curved discharge, passenger side mount)
- Billet aluminum mounting bracket with all necessary hardware and provision for alternator mount
- Supercharger drive assembly
- Integrated manual belt tensioner with sealed bearing tensioner pulley and 8-rib belt
- Billet aluminum 8-rib supercharger crank pulley with hard anodize finish (6.88” diameter)
- High-grade mounting hardware
- Supercharger air inlet filter
- Mandrel bent aluminum discharge tube with clamps and silicone sleeves
- Cast aluminum PowerHat™ Carburettor bonnet assembly featuring diffusion technology.
- Unique low-profile design measures only 3.2” tall (overall height) and permits near-360 degree rotation for universal fitment
- Integrated air management features and diffuser element reduce jetting and other issues associated with traditional “carby hats”
- 3” diameter inlet port
- Includes sealing gaskets all necessary mounting hardware for attachment to Holley 4150-type carburetors
Required Components (Not Supplied)
Major components that are not included, but are necessary for proper system function and are to be supplied by the installer:
- Quickfuel, Demon or Holley 4150-type 4 barrel carburettor with mechanical secondaries; designed for “blow-though” applications (may require rejetting/minor modification)
- Recommended carburettor for most applications: Quickfuel p/n Q-750-BAN
- High-performance, boost referenced fuel pump
- Compressor bypass valve (see below for available options)
- Accessory belts (will vary per application depending on accessory configuration and supercharger pulley diameters)
Other Suggested Components
- A compressor bypass valve is suggested for all applications exceeding 5 psig boost. Below is a selection of components available (contact us to determine the proper valve selection for the specific application)
- Paxton # 8D204-001 Race bypass valve
- Paxton # 8D004-052 Race bypass weld-on flange (aluminum)
- Paxton # 8D103-001 Mondo bypass valve
- Paxton # 8D003-052 Mondo bypass weld-on flange (aluminum)
- Paxton # 8D205-003 BV57 bypass valve
- Paxton # 8D005-051 BV57 bypass weld-on flange (aluminum)
- Aftermarket ignition amplifier (not required, but recommended)
- MSD 6A ignition amplifier box or equivalent
