Paxton

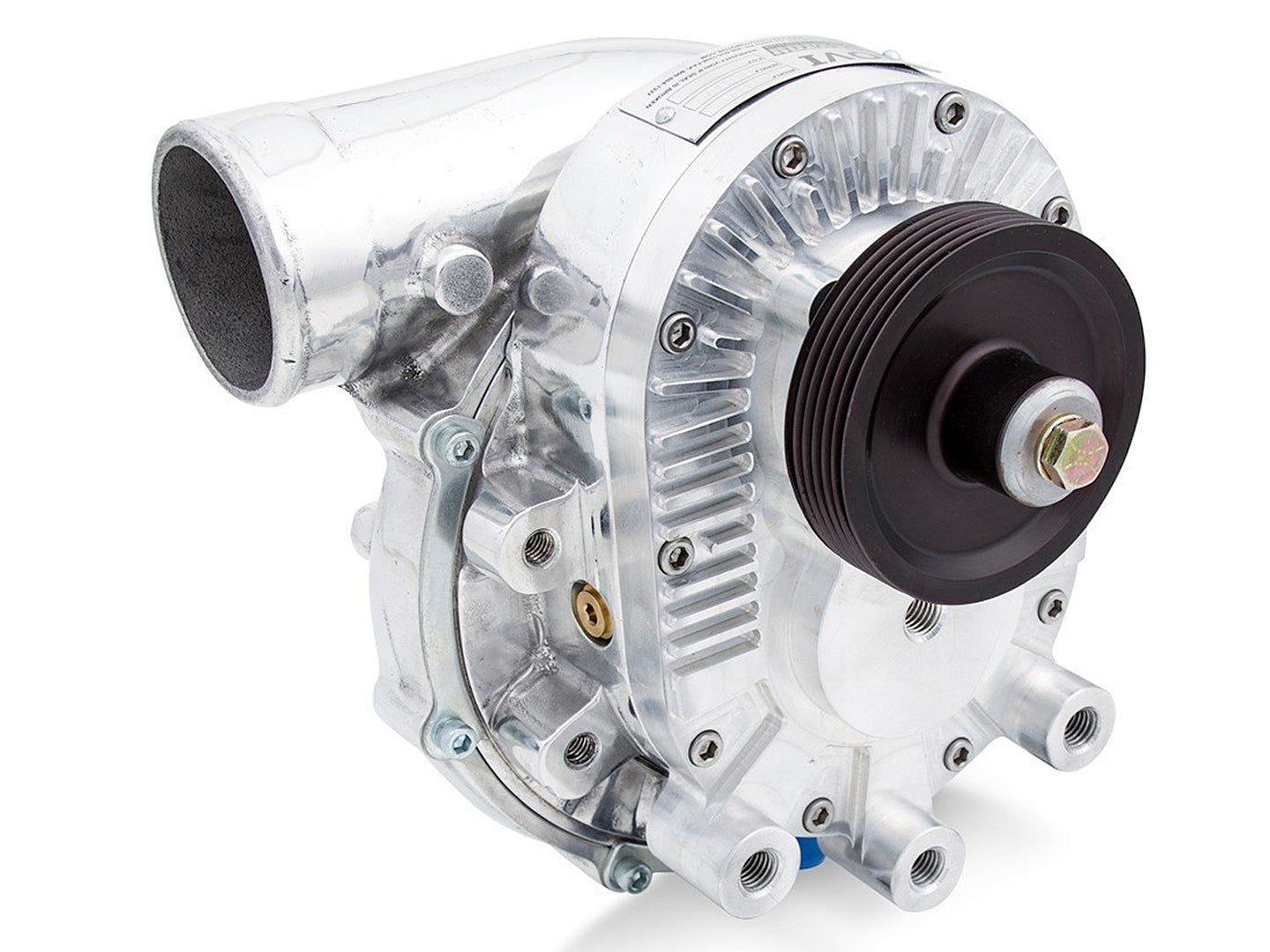

Paxton Novi 2200R Supercharger
Discharge:CW Rotation - Straight
Lubrication:Oil Feed w/ Air Assist
Colour:Satin
POA - Please contact us for pricing.
"Large blower" performance in a smaller package. The NOVI 2200R combines the advanced technology and race-proven performance and fits most existing Paxton and Vortech mounting bracketry. The NOVI 2200R is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiency and requires the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.
Performance Specs
- Internal Step-Up Ratio: 3.45:1
- Max Speed: 65,000 RPM
- Max Boost: 30+ PSI
- Max Flow: 1,600 CFM
- Max Power: 1,200+ HP
- Peak Efficiency: 78%
Dimensions
- Discharge OD: 3.0"
- Inlet OD: 4.0"
- Discharge ID: 2.64"
- Inducer Diameter: 3.7"
