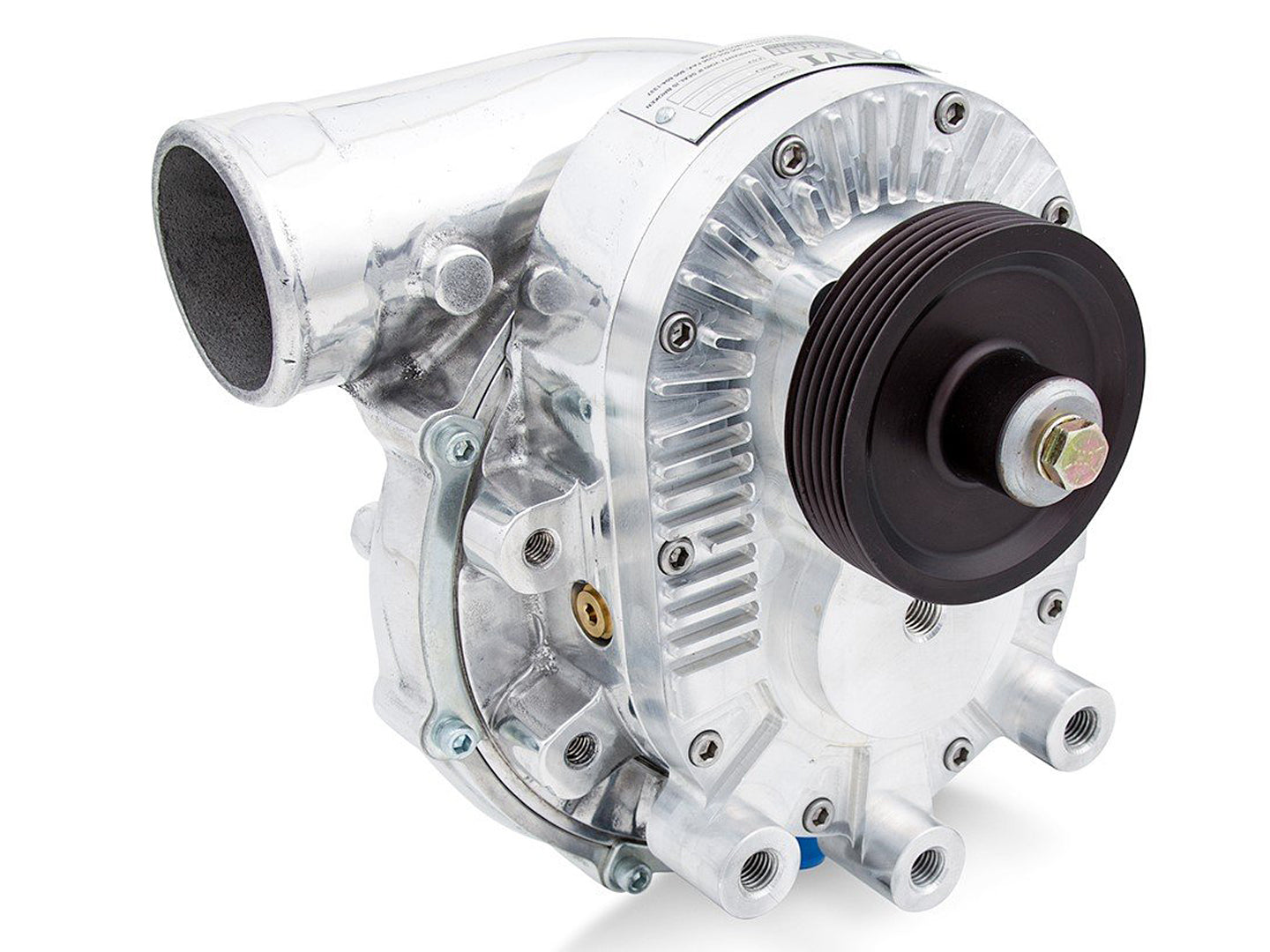

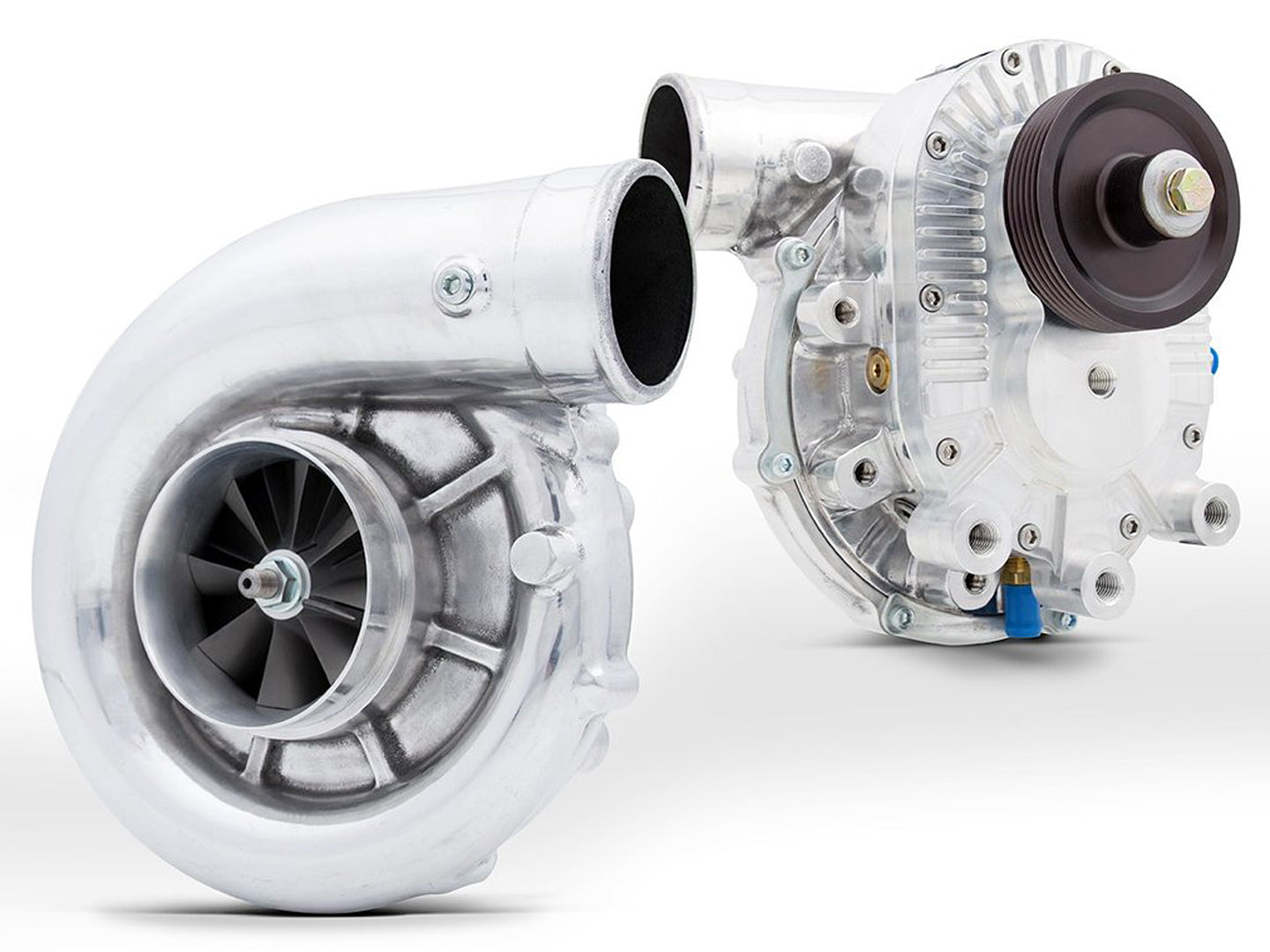

Paxton Novi 1500 Supercharger

POA - Please contact us for pricing.

The Paxton NOVI 1500 model, with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. These units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for some other NOVI units, including the 1200, 1220, 2200, and SL versions of the same units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1500 Supercharger is capable of up to 950HP on modified vehicles. Superior 75% peak efficiency is ideal for latest generation of improved breathing, high-power street and strip engines.

• Helical cut gear profile with SQ technology
• Near silent operation
• Available with straight or curved discharge
• Does not include drive pulley
• 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)

Performance Specs

Internal Step-Up Ratio: 3.61:1

Max Speed: 55,000 RPM (limited to 52,000 on 1500SL Models)

Max Boost: 26 PSI

Max Flow: 1,400 CFM

Max Power: 950 HP

Peak Efficiency: 75%

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.51
