Paxton

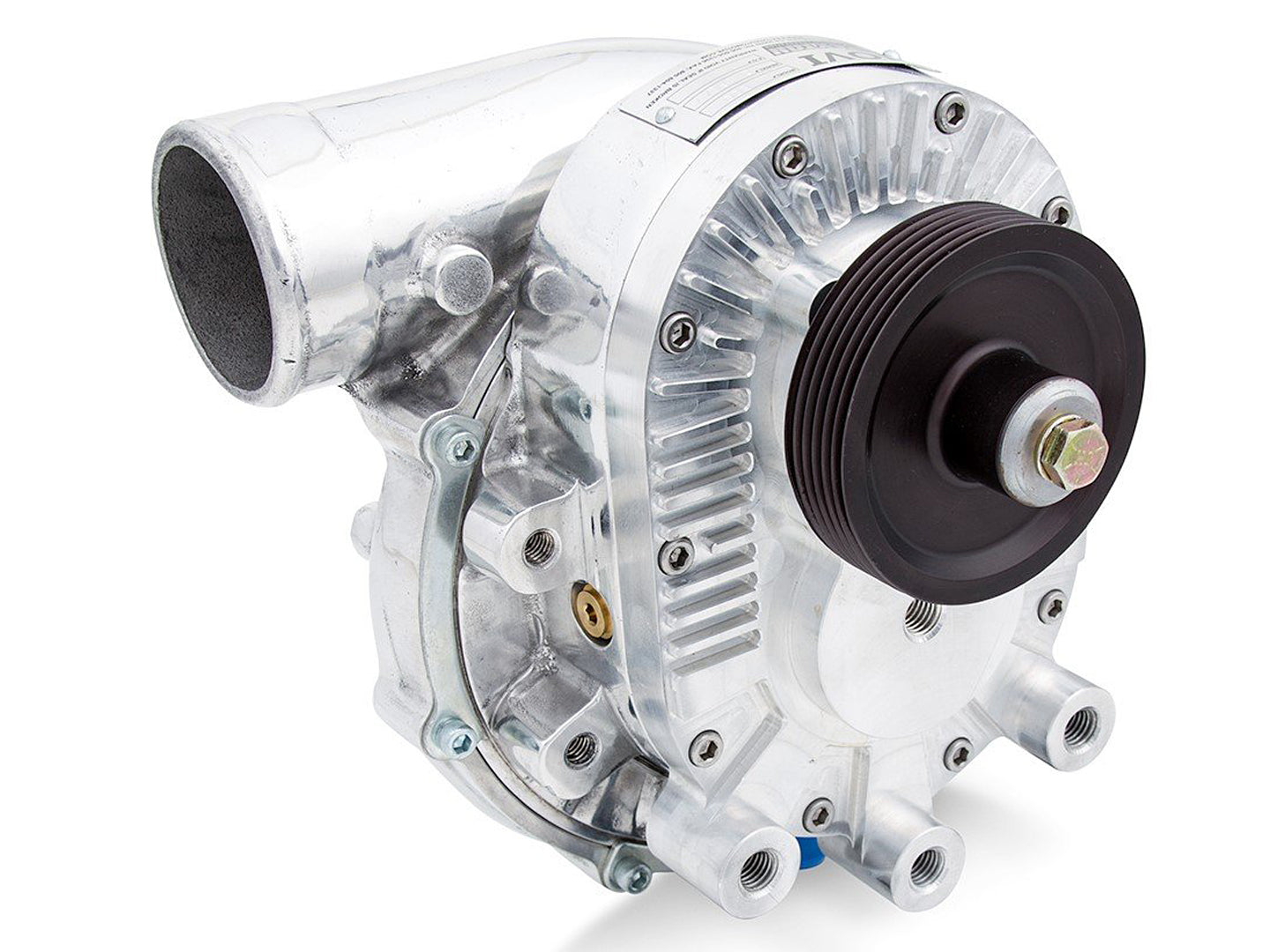

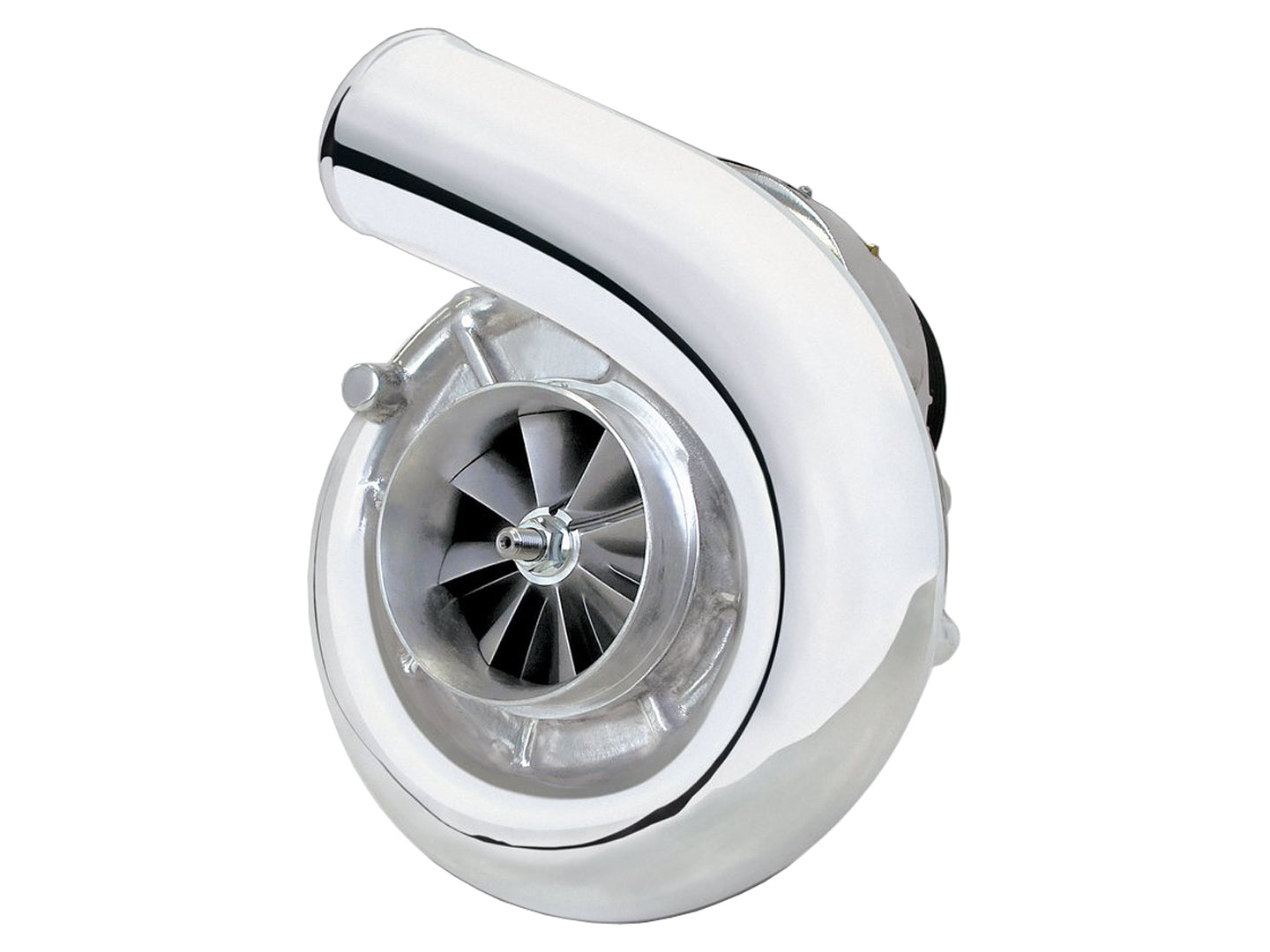

Paxton Novi 1220 Supercharger
Discharge:CW Rotation - Straight
Lubrication:Oil Feed w/ Air Assist
Colour:Satin
POA - Please contact us for pricing.
Equivalent to the Vortech V-2 SCi-Trim model, the NOVI 1220 with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. All NOVI 1220 units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for Vortech V-1, V-2, or V-3 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1220 Supercharger is capable of up to 725HP on modified vehicles. Superior 75% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.
- Helical cut gear profile with SQ technology
- Near silent operation
- Available with straight or curved discharge
- Does not include drive pulley
- 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
Performance Specs
- Internal Step-Up Ratio: 3.61:1
- Max Speed: 53,000 RPM
- Max Boost: 17 PSI
- Max Flow: 1,050 CFM
- Max Power: 725 HP
- Peak Efficiency: 75%
Performance specs apply to units equipped with standard gearcase.
Dimensions
- Discharge OD: 2.75"
- Inlet OD: 3.5"
- Discharge ID: 2.38"
- Inducer Diameter: 3.1"
