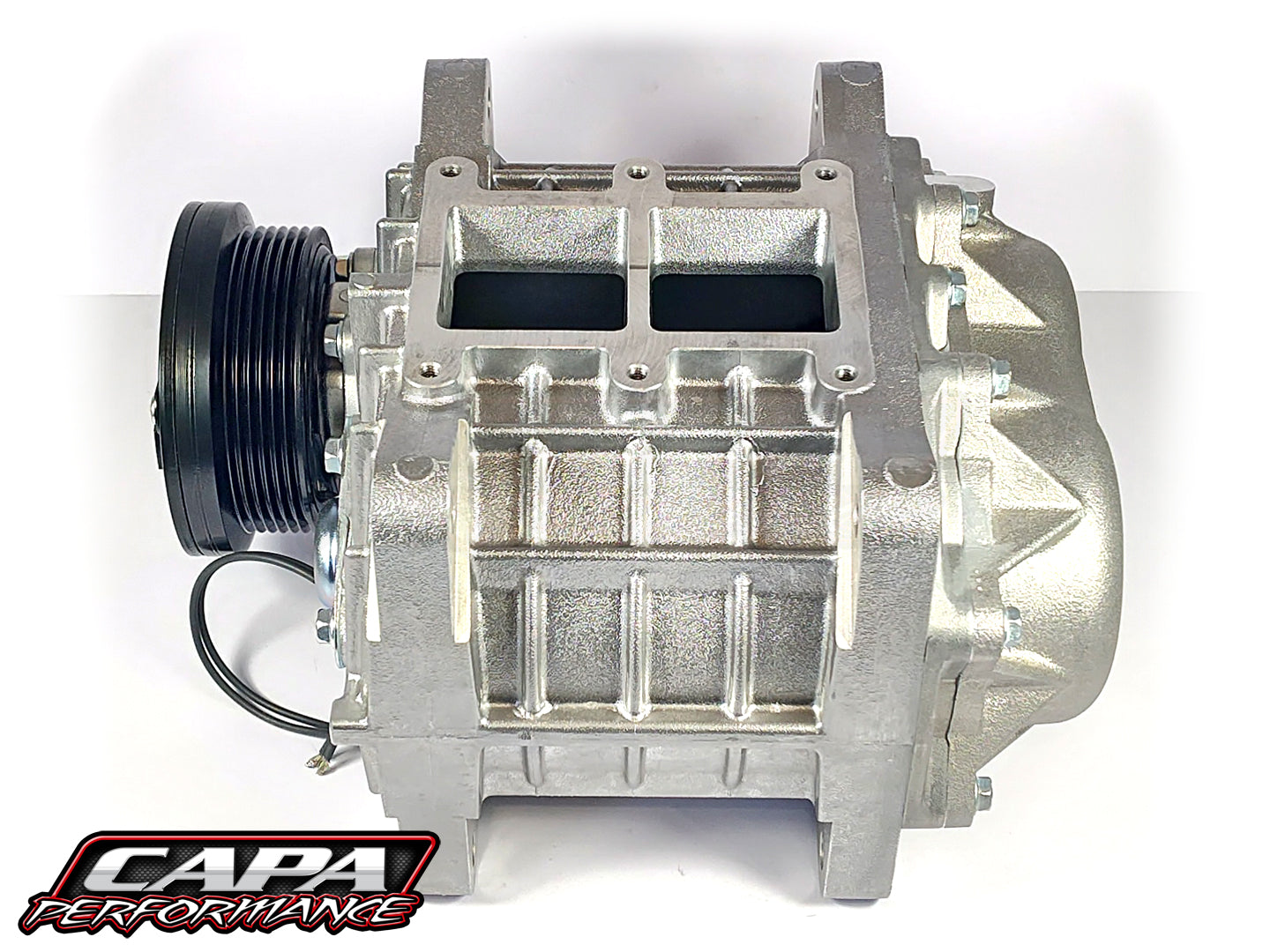

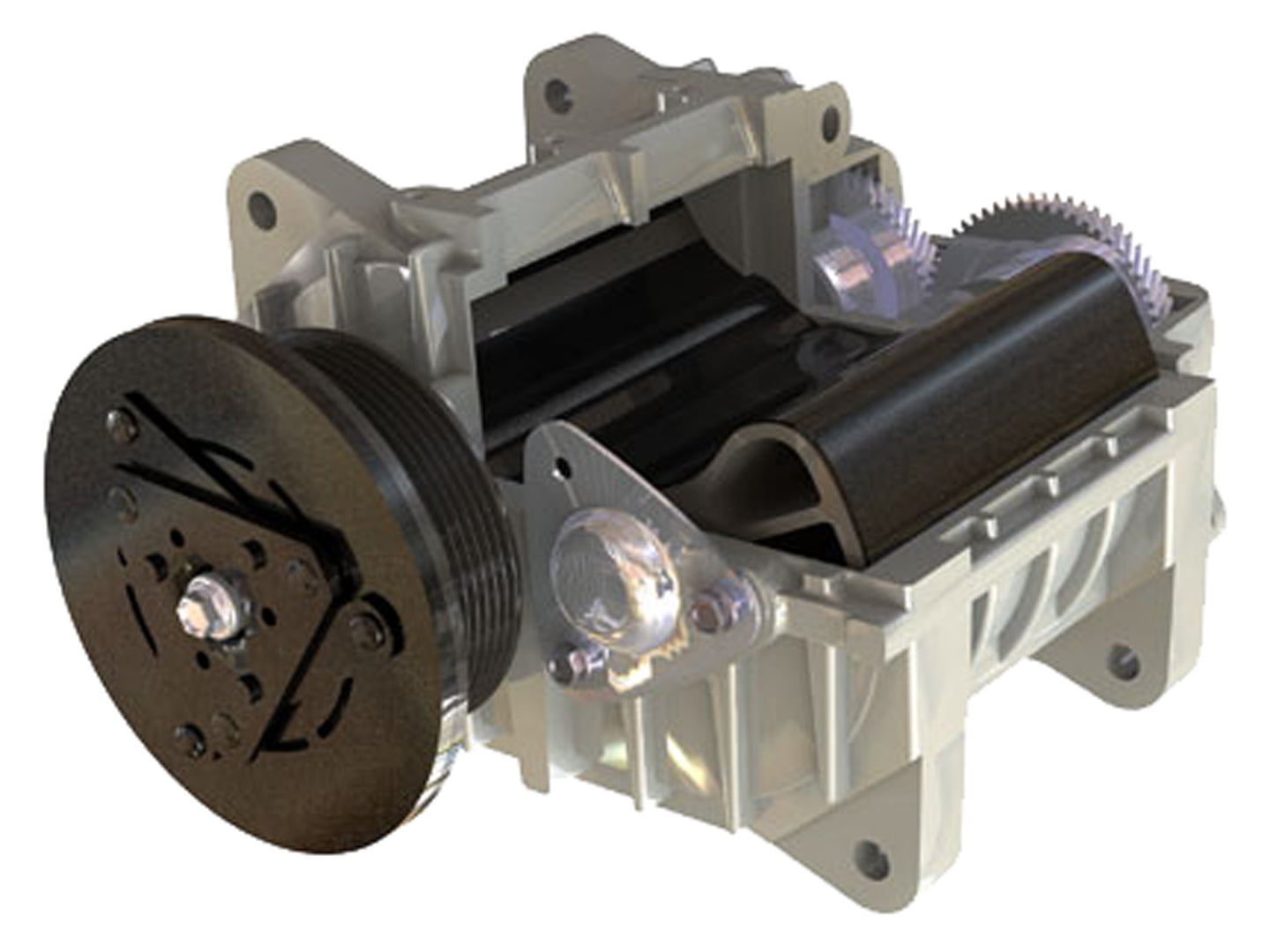

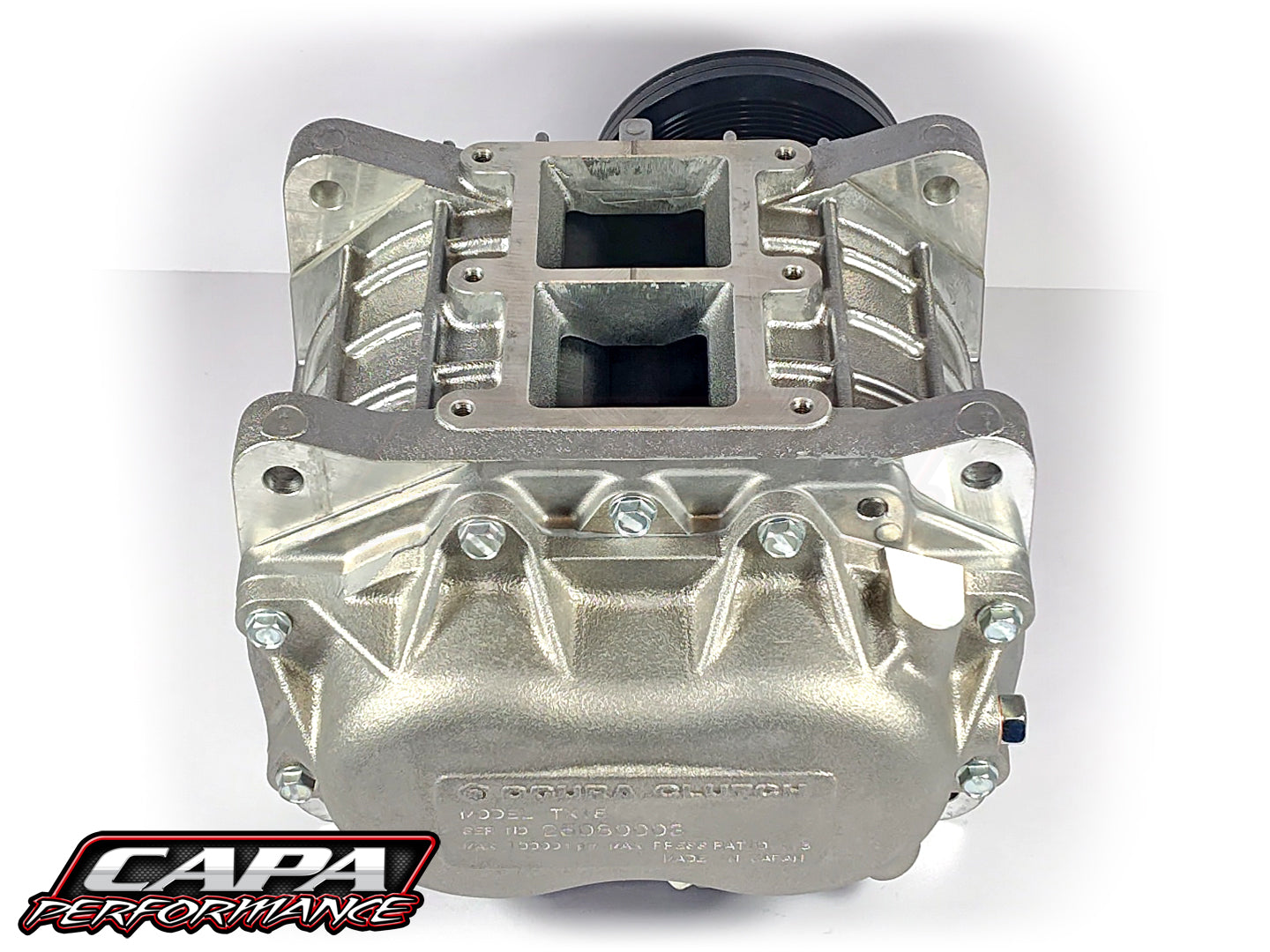

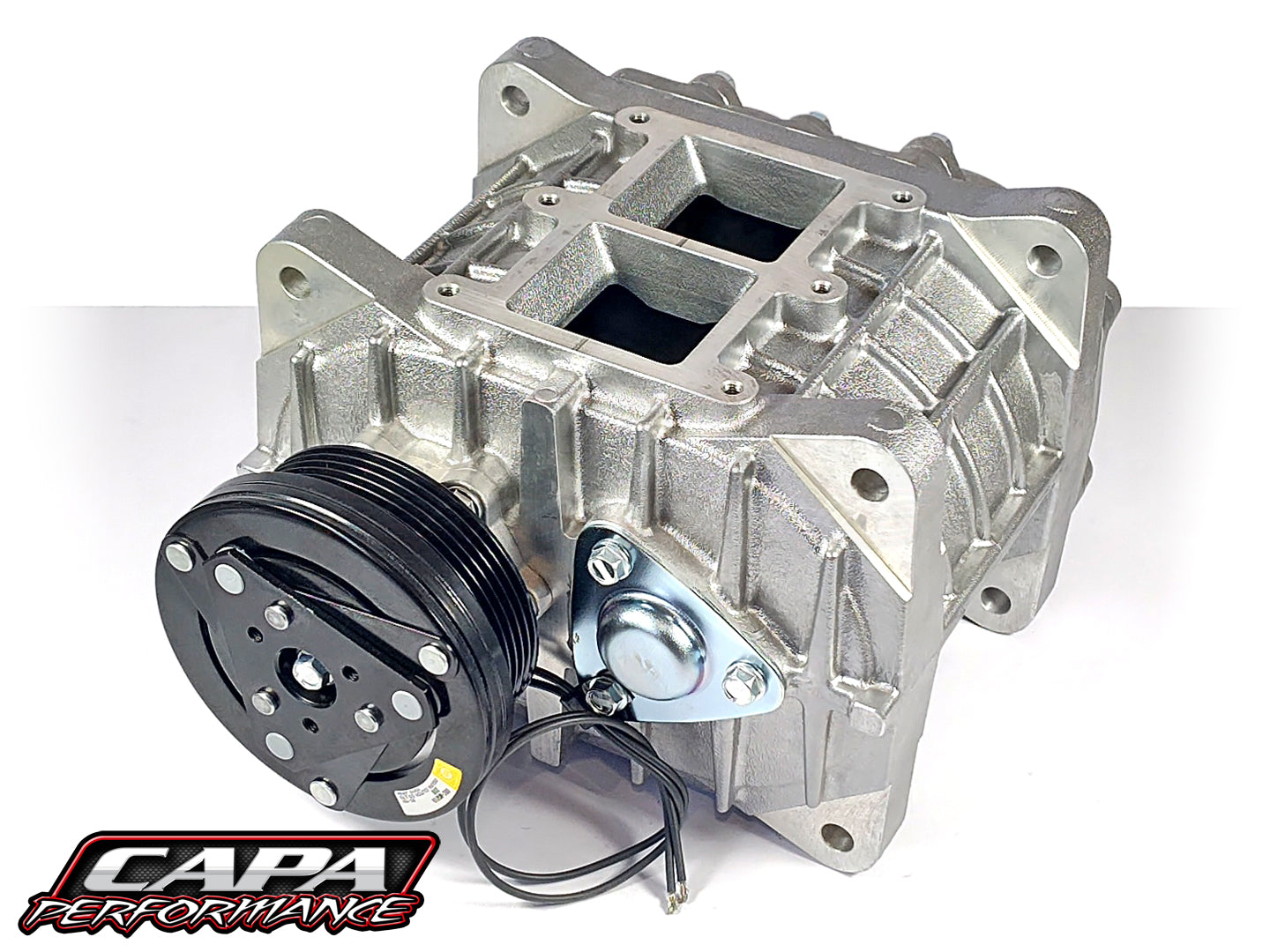

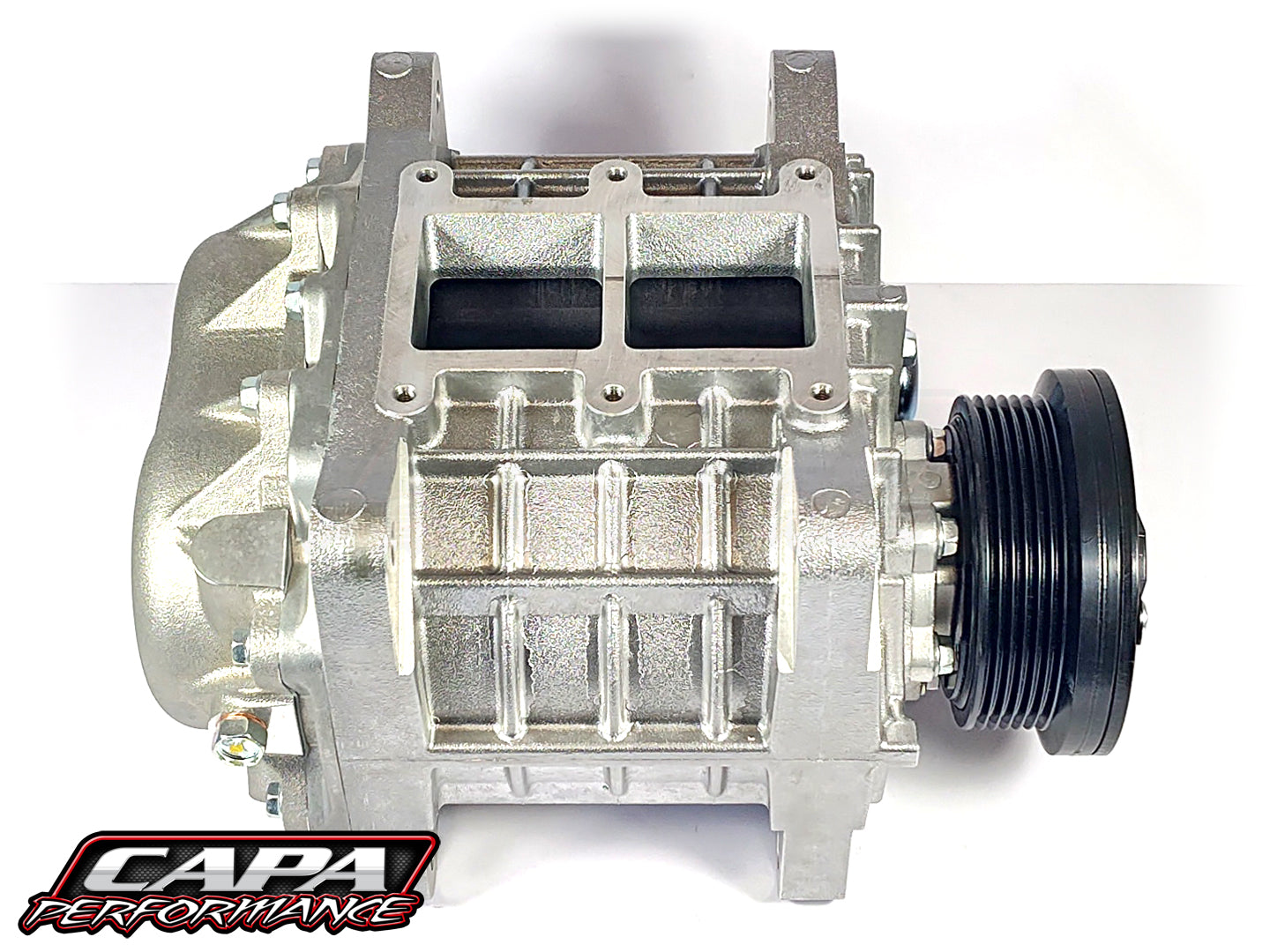

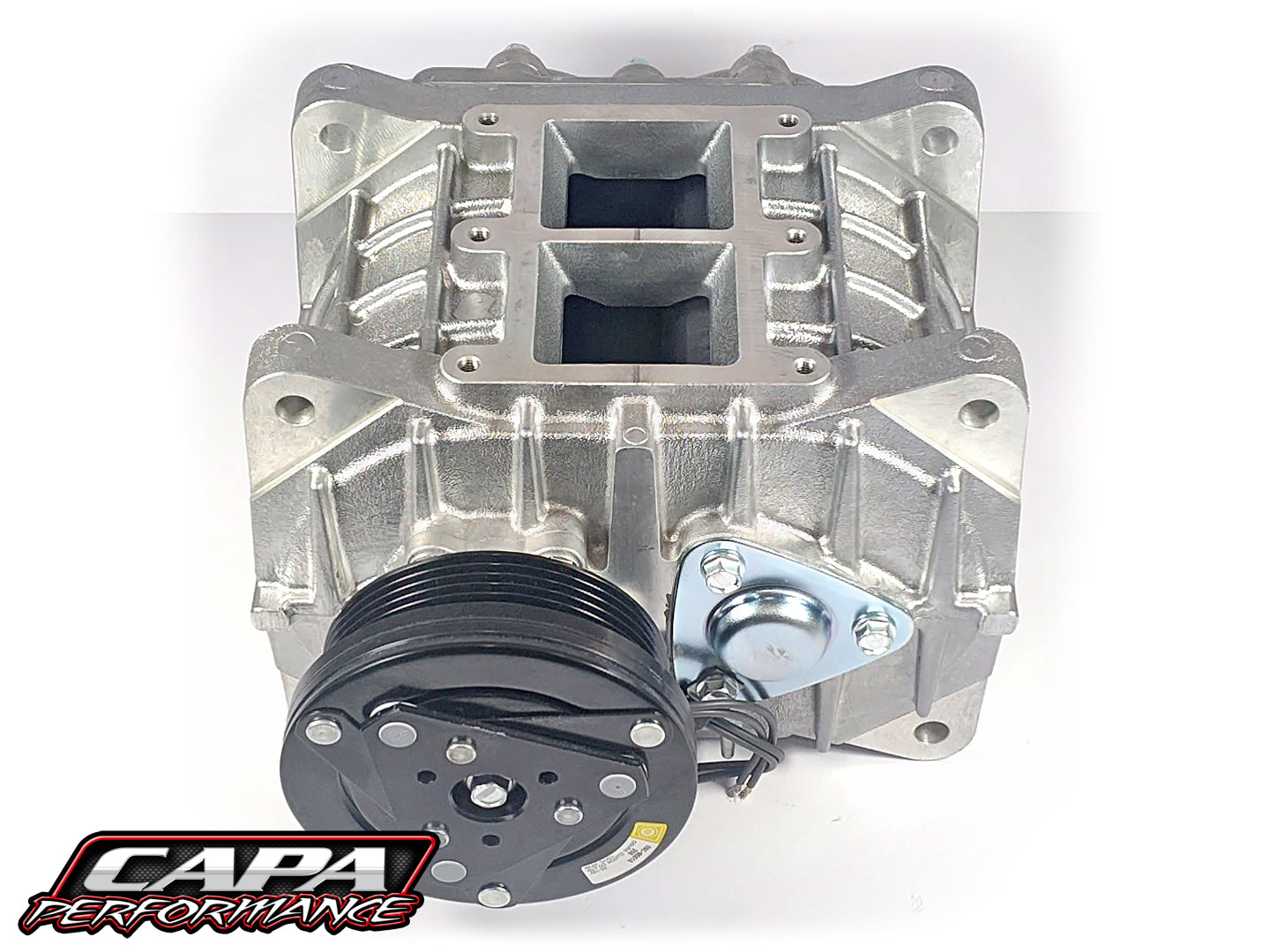

Ogura TX15 Supercharger with Clutch Assembly
Pickup currently unavailable at 20 Verrall Crescent
Ogura TX15 Supercharger with Clutch Assembly
20 Verrall Crescent
Pickup currently unavailable
20 Verrall Crescent
Berri SA 5343
Australia

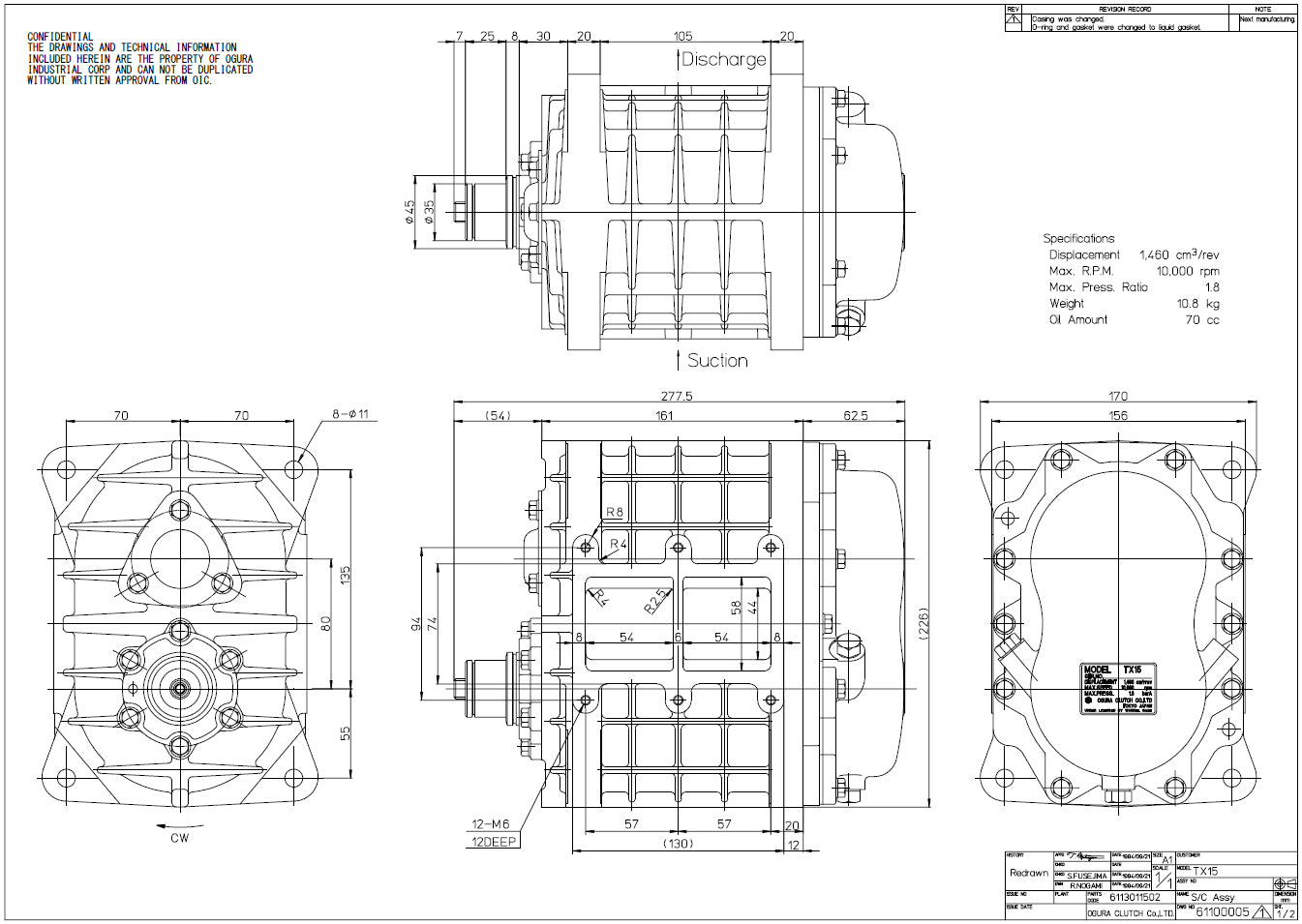

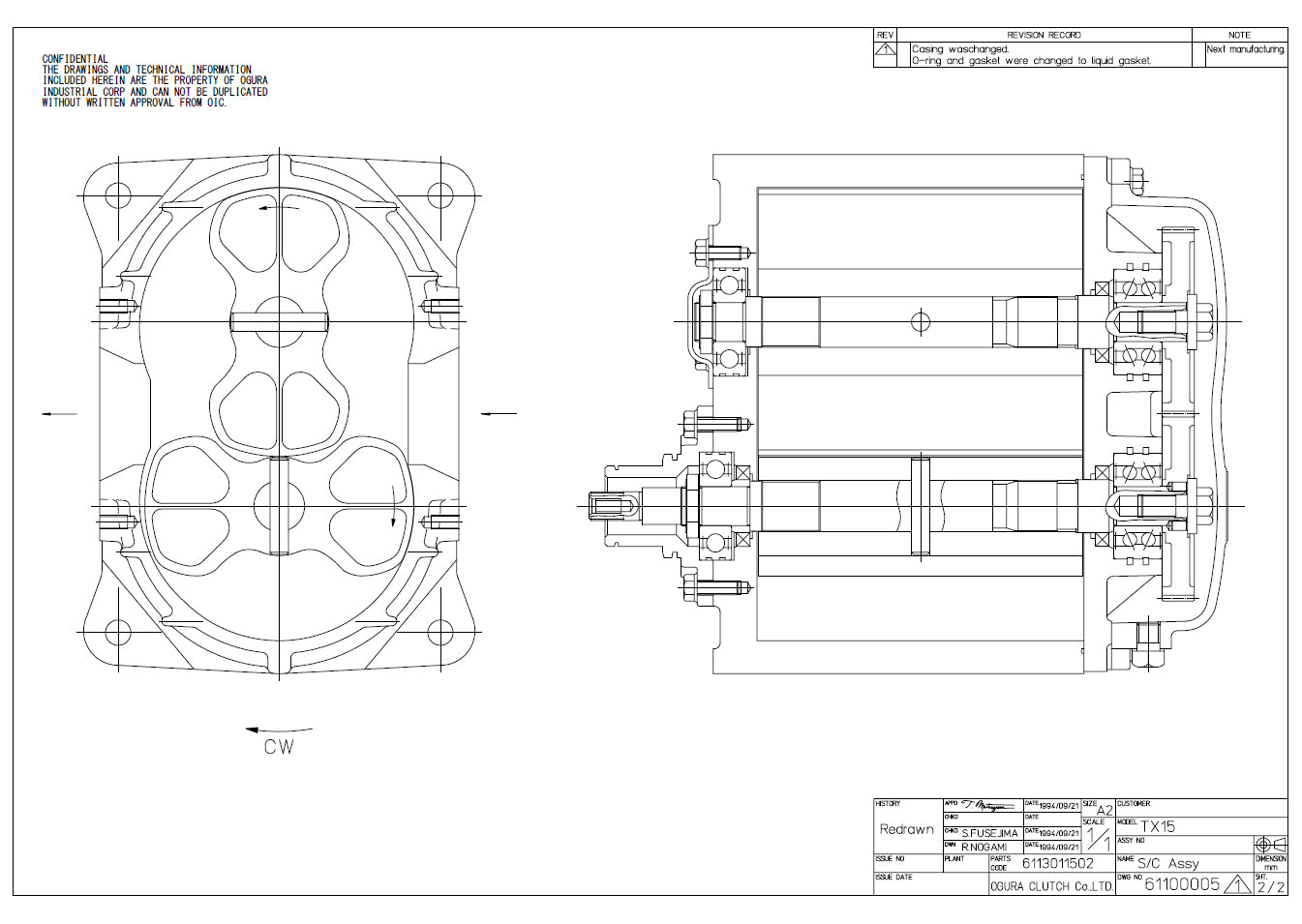

TX15 Supercharger Specifications
| Theoretical Discharge | 1,460 cc/rev |
| Maximum RPM (continuous) | 10,000 rpm |
| Maximum RPM (short time) | 13,000 rpm |
| Maximum Pressure Ratio (continuous) | 1.8 |
| Maximum Pressure Ratio (short time) | 2.0 |

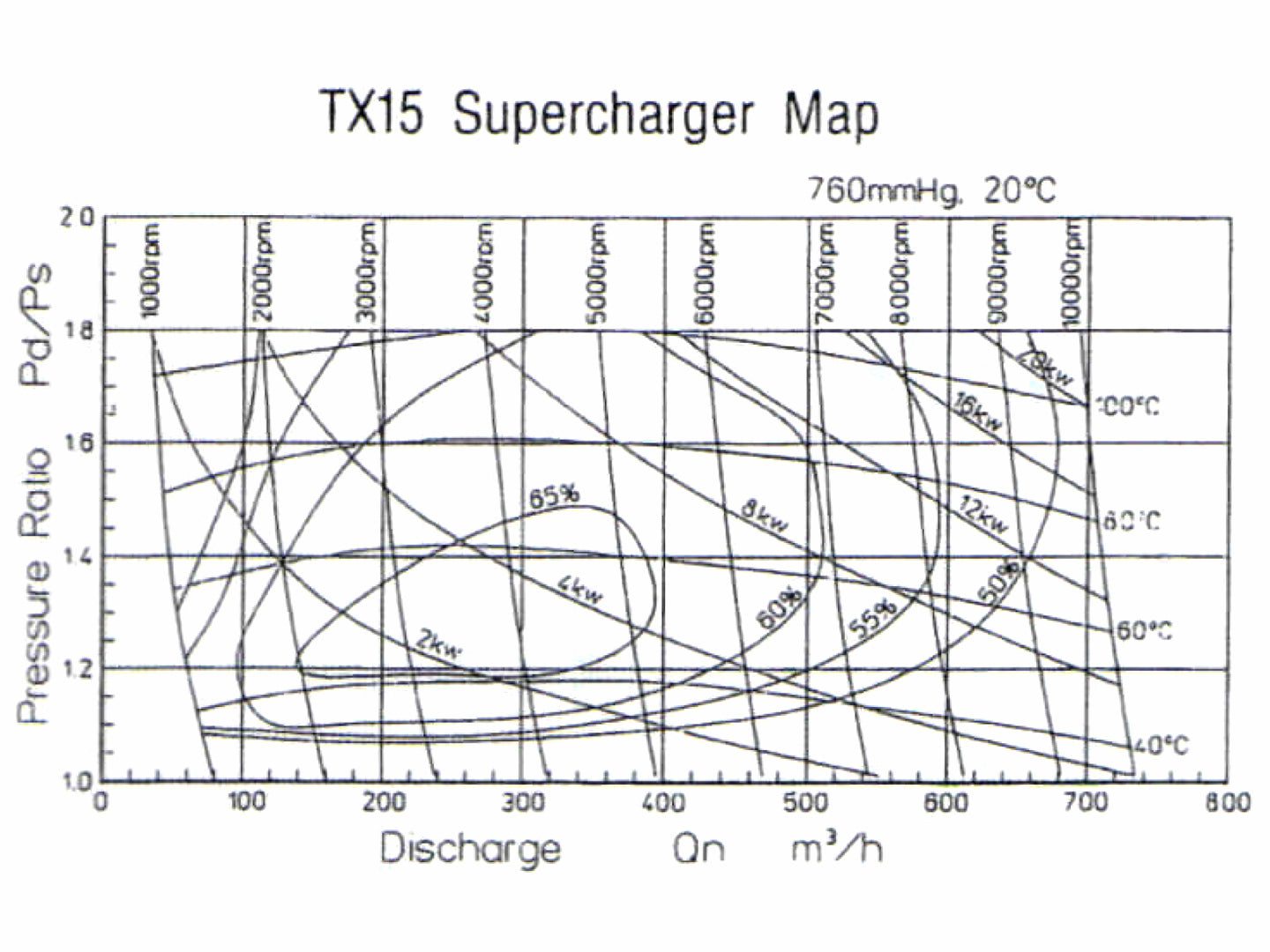

| Maximum Discharge at Maximum RPM (at pressure ratio 1.8) | 675 m3/h |
| Weight (Supercharger) | 10.8kg |
| Weight (Supercharger w/ Clutch) | 12.8kg |
