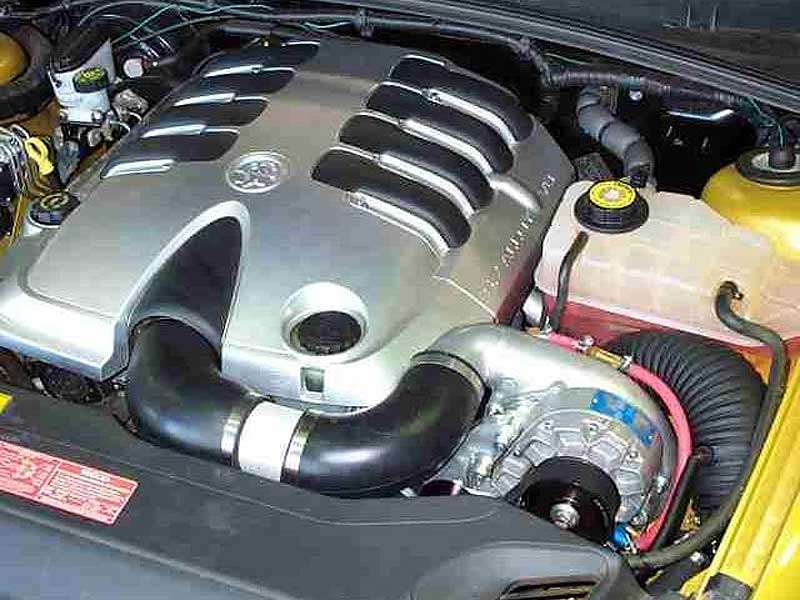

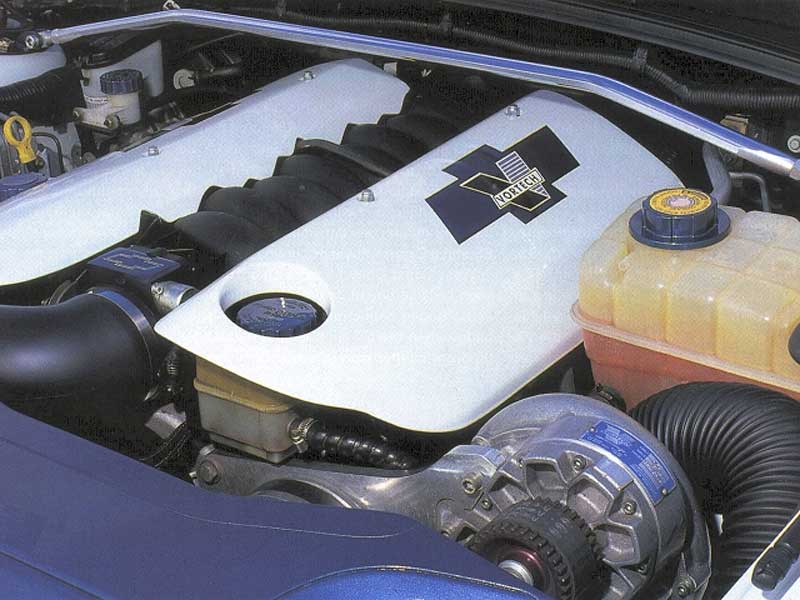

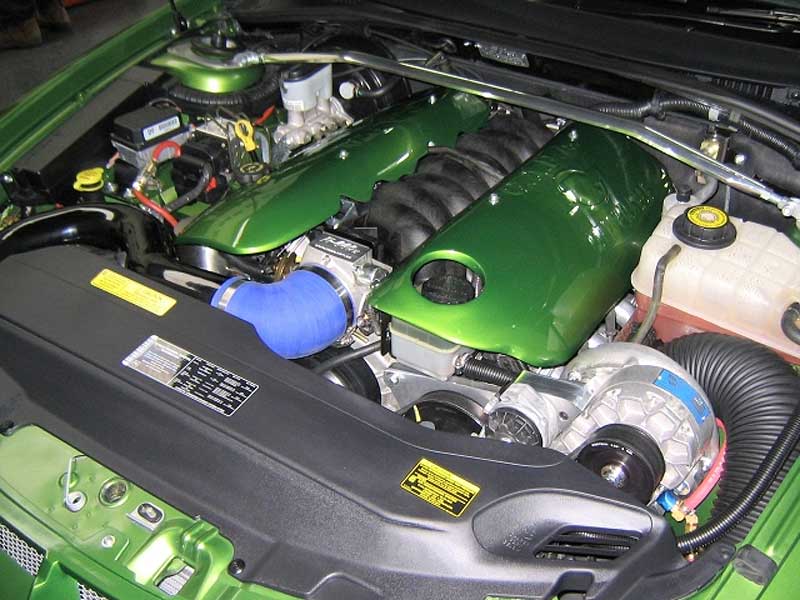

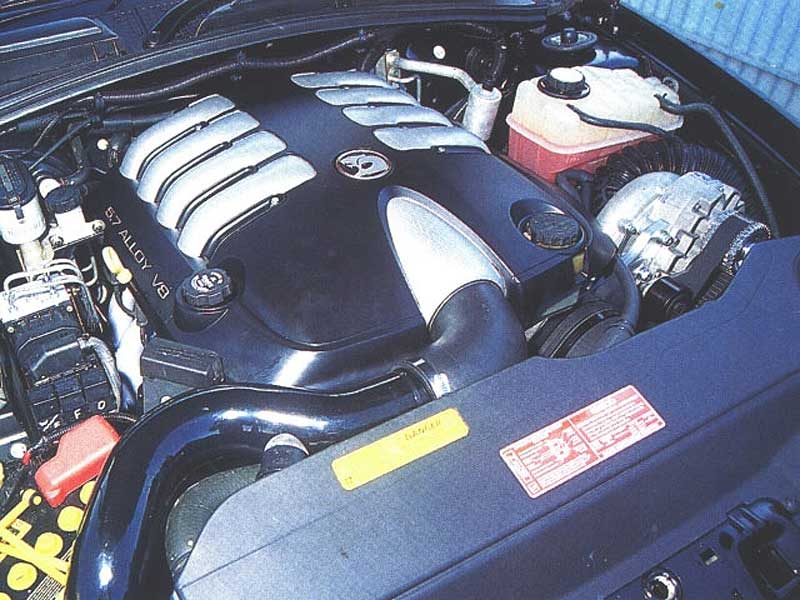

VT-VY LS1 V8 Vortech Supercharger Kit

THE BEST VALUE FOR MONEY BOLT ON POWER FOR YOUR VT-VY LS1 V8 COMMODORE

Suitable for all VT Series 2 to VY V8 Commodores.

Rated horsepower of kit: 400kW (460kW intercooled)

Overview:

PLEASE NOTE: 6 Week Lead Time on all CAPA Supercharger Kits. Supercharger Kits are Built to Order.

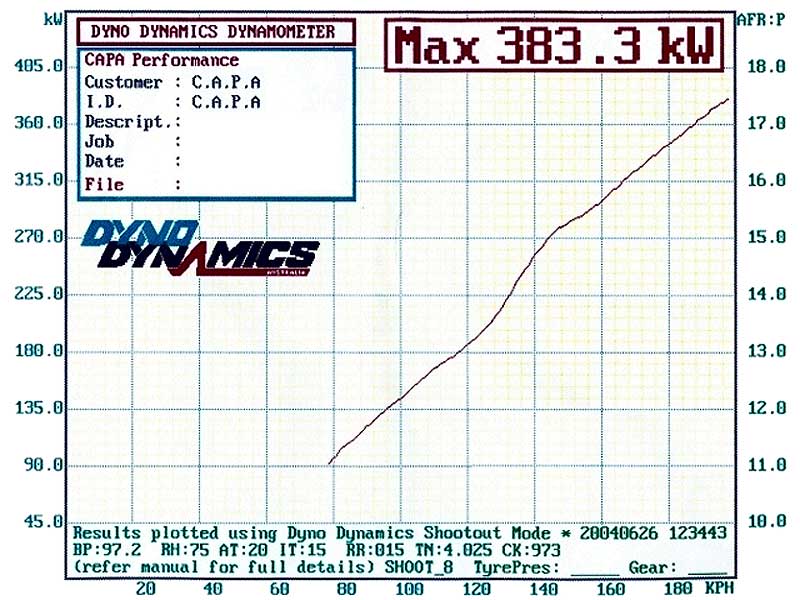

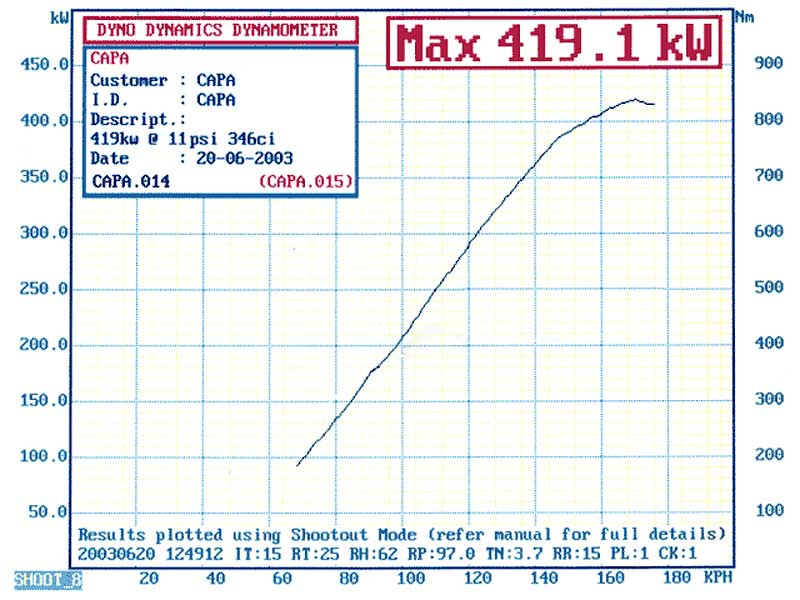

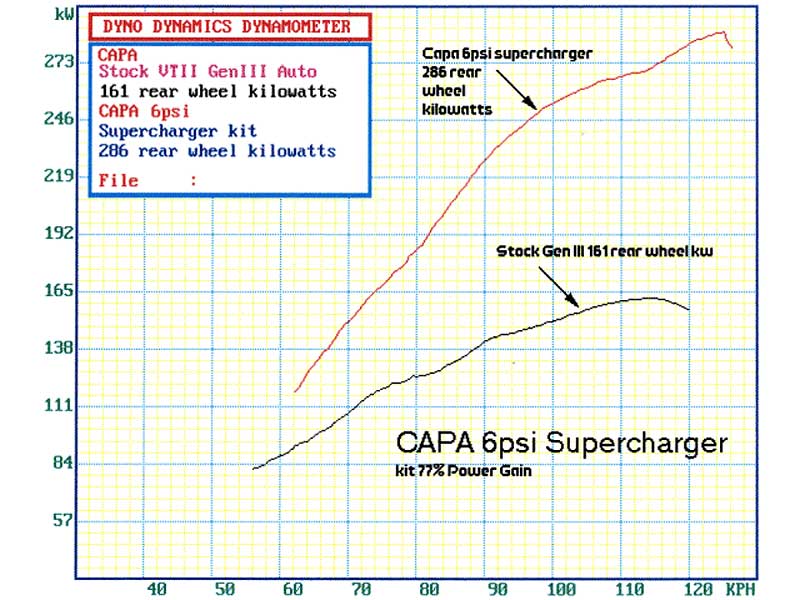

Increase the power of your VT-VY LS Commodore from 220-260kW (standard) to 400kW supercharged (460kW with our intercooled kit).

The Holden LS-1 supercharger kit is our most popular kit. There are literally hundreds of them on the road today. We have configurations available from budget build to a 1000hp dyno monster and everything in between.

• Complete supercharger kits available
• Intercooler and drive upgrades available
• Centrifugal supercharger for a linear power curve
• ADR compliance available (6psi kits)
• Vortech supercharger is driven by an additional pulley attached to the crank pulley
• Sealed supercharger speeds up installation (6psi kits)

Parts Included:

• Vortech sealed V-3 Si-Trim supercharger, standard rotation
• Aluminium laser cut bracket kit
• 8-Rib dedicated supercharger drive
  (35mm / 50mm gilmer drive available in race kits)
• Pod filter
• Intake and discharge pipework
• Bypass / blowoff valve

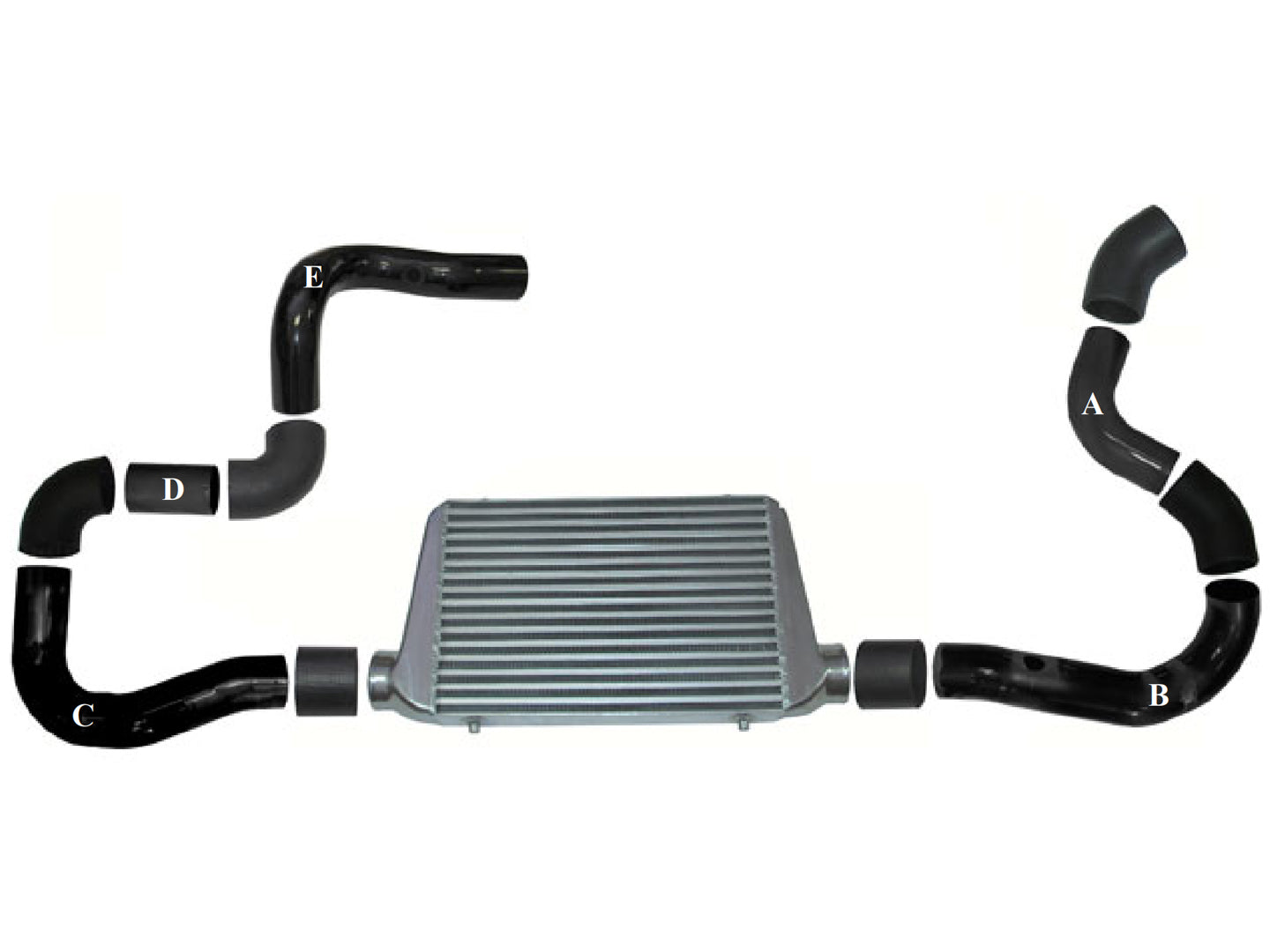

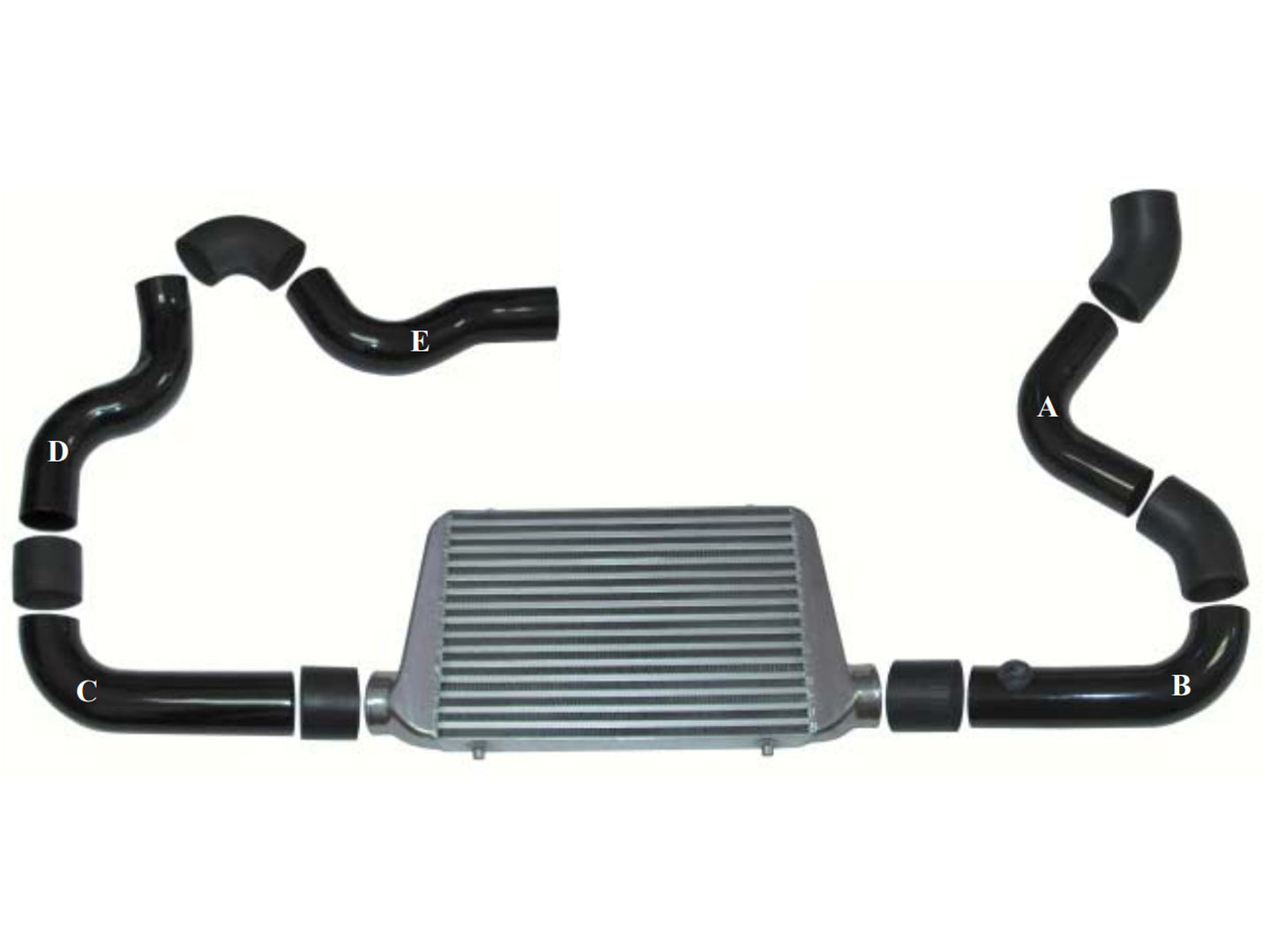

• Non-beam style intercooler (8psi kits)
• 668cc fuel injectors (6psi & 8psi kits)
• 2 bar map sensor (6psi & 8psi kits)
• Intank fuel pump (8psi kits)

Note: Battery required in all intercooled kits (not included). Please contact us for more information.

Note: Kit can be fitted to VZ V8 with use of VT-VY power steer pump and hose (not included). Please contact us for more information.

Belt System:

8-Rib Crank Drive - Suitable for moderate boost levels on vehicles with camshafts (6psi & 8psi kits).

35mm Gilmer Crank Drive - Suitable for high boost levels on vehicles with camshafts (12psi+ race kits).

50mm Gilmer Crank Drive - Movement of radiator required / race use. Suitable for high boost levels on vehicles with camshafts (12psi+ race kits).

Installation Overview:

Difficulty - Intermediate:
Intermediate - general mechanical ability required for the installation of this product (all kits)

Install Time:
Supercharger kit - 8 hours
Intercooler kit - 4 hours

Tools Required:
Basic hand tools
Power steering pulley install & removal tool
Harmonic balancer install & removal tool
Vehicle tuning software

Installation Manuals:
VT-VY LS V8 Commodore, crank drive (PDF 0.47MB)
VT-VZ LS V8 Intercooler Kit, exc. HSV & VZ Monaro (PDF 3.08MB)
VT-VZ LS V8 Intercooler Kit, HSV & VZ Monaro only (PDF 2.66MB)
VT-VY LS V8 Commodore, p/s drive, discontinued (PDF 0.78MB)
