Vortech

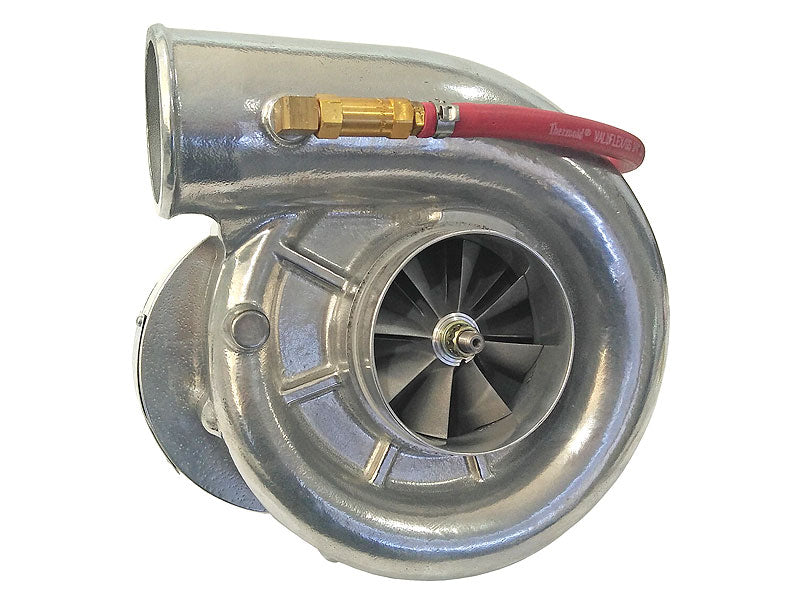

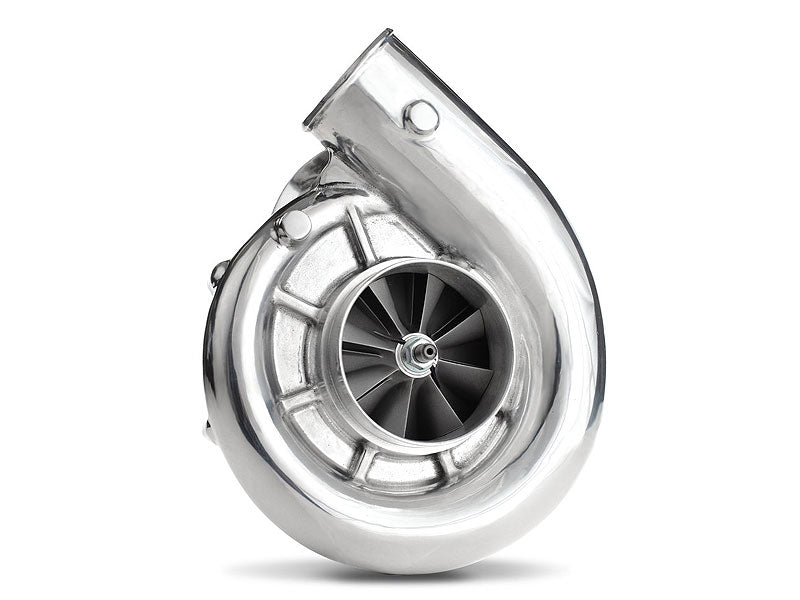

Vortech V-3 Ti-Trim Supercharger
Discharge:CW Rotation - Straight
Lubrication:Sealed
Colour:Satin
Quantity:
Pickup available at 20 Verrall Crescent
Usually ready in 2-4 days
Vortech V-3 Ti-Trim Supercharger
CW Rotation - Straight / Sealed / Satin
20 Verrall Crescent
Pickup available, usually ready in 2-4 days
20 Verrall Crescent
Berri SA 5343
Australia
Helical cut gear profile with SQ technology. Available with straight or curved discharge.
| Max Speed (Sealed / Oil Feed): | 50,000 RPM / 58,000 RPM |
| Max Boost (Sealed / Oil Feed): | 22 PSI / 26 PSI |
| Max Flow: | 1,400 CFM |
| Max Power: | 950 HP |
| Peak Efficiency: | 75% |
| Inducer Diameter: | 3.51" |
| Inlet OD: | 3.75" |
| Discharge ID: |
2.38"
|
| Discharge OD: | 2.75" |
