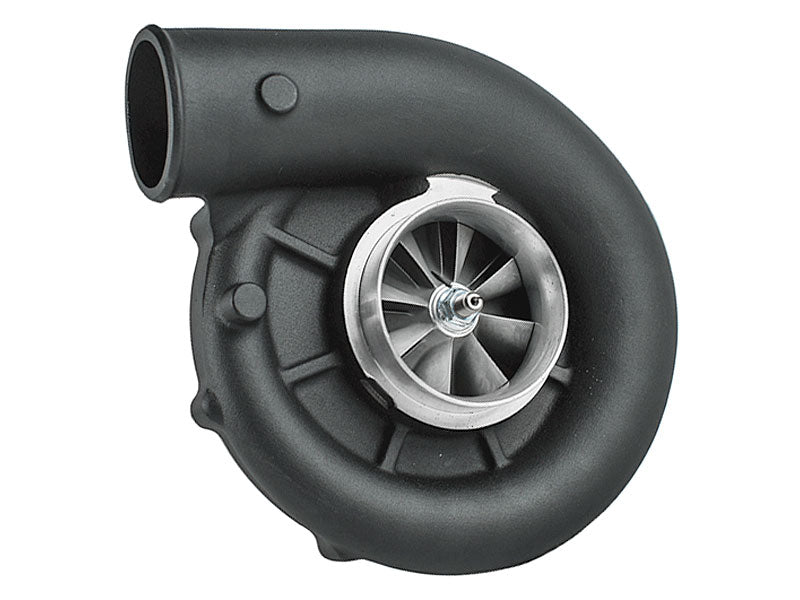

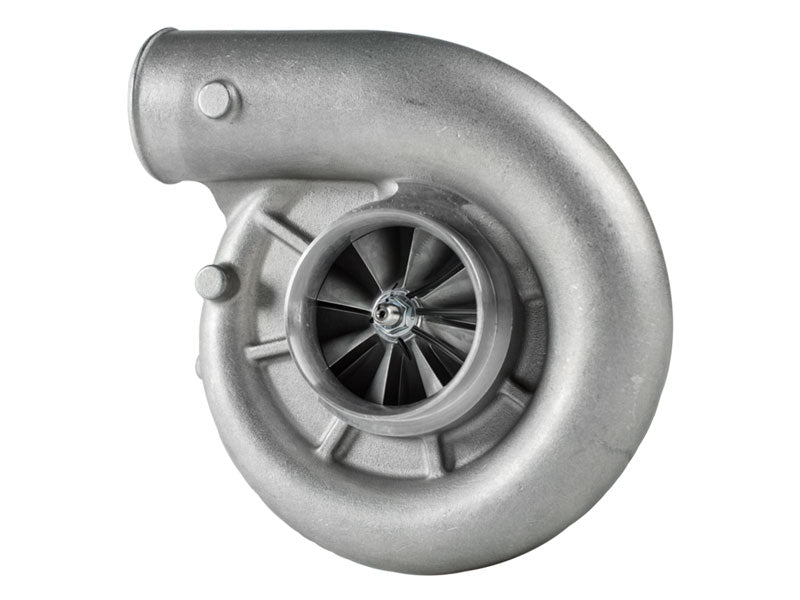

Vortech V-3 SCi-Trim Supercharger
Discharge:CW Rotation - Straight
Lubrication:Sealed
Colour:Satin
Quantity:
Pickup available at 20 Verrall Crescent
Usually ready in 2-4 days
Vortech V-3 SCi-Trim Supercharger
CW Rotation - Straight / Sealed / Satin
20 Verrall Crescent
Pickup available, usually ready in 2-4 days
20 Verrall Crescent
Berri SA 5343
Australia
Impeller speed and efficiency slightly higher than S-Trim. Low-friction impeller seal allows for "upstream" throttle draw-through applications.
| Max Speed (Sealed / Oil Feed): | 50,000 RPM / 58,000 RPM |
| Max Boost (Sealed / Oil Feed): | 17 PSI / 21 PSI |
| Max Flow: | 1,050 CFM |
| Max Power: | 725 HP |
| Peak Efficiency: | 75% |
| Inducer Diameter: | 3.1" |
| Inlet OD: | 3.50" |
| Discharge ID: |
2.38"
|
| Discharge OD: | 2.75" |
