Vortech Supercharger TUNER Kit, '05-'08 5.7L 300C, Charger, Magnum

PLEASE NOTE: 6 Week Lead Time on all Vortech Supercharger Kits. Kits are Imported via Air Freight ex Manufacturer.

Product Details

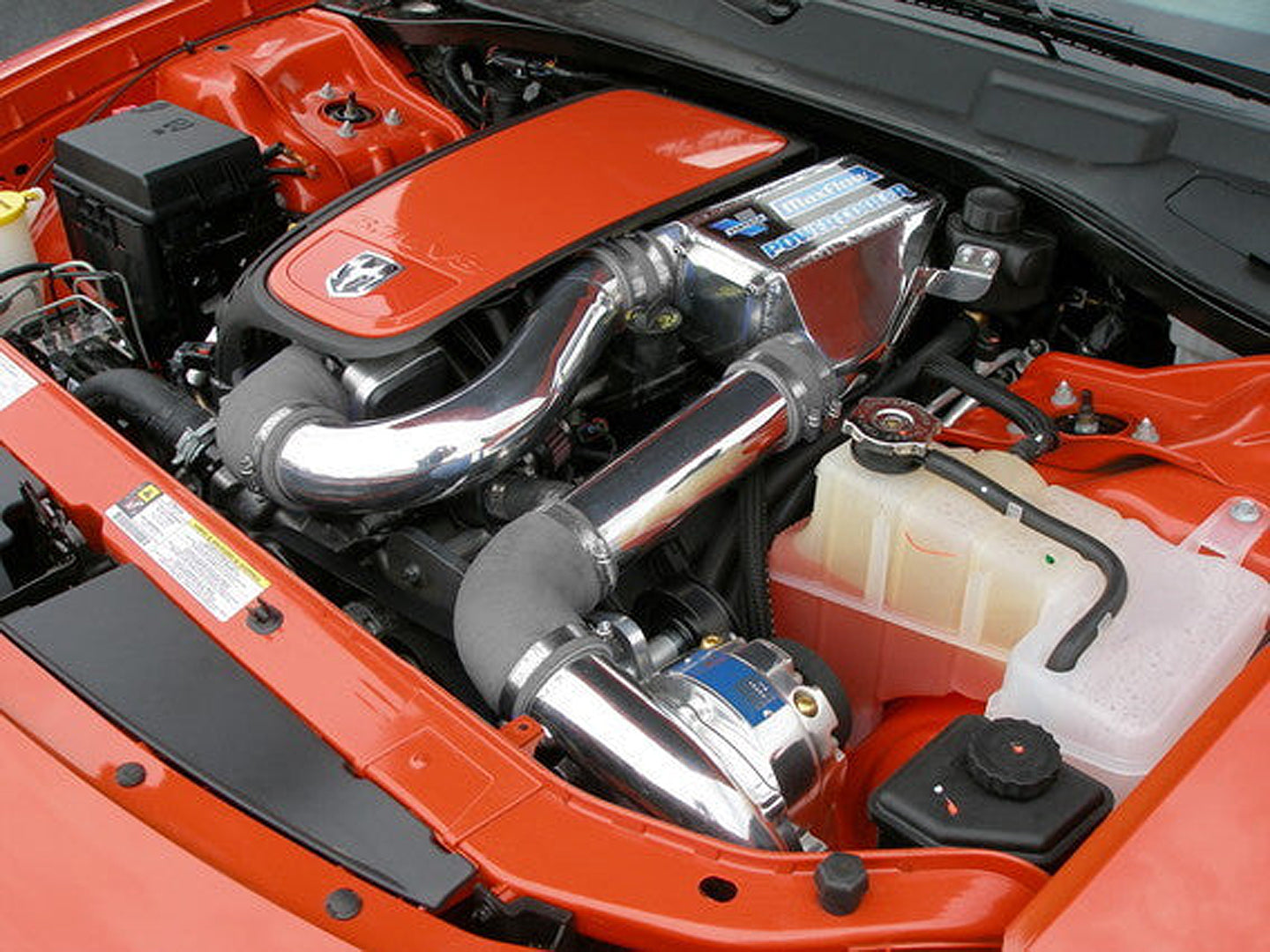

Vortech Tuner Kits are available for the 2005-2008 Chrysler/Dodge 5.7L HEMI vehicles, featuring the V-3 Si-Trim centrifugal supercharger with Vortech's air-to-water double pass charge cooler system. The included V-3 Si-Trim supercharger is capable of boosting your Chrysler 300C, Dodge Charger or Magnum up to 775 horsepower with supporting engine modifications.

The system uses Vortech's V-3 Si-Trim supercharger. Continued development in Vortech's Lab has resulted in the V-3 Si-Trim. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading 78% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability.

Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decrease.

Quality Features

• New Vortech V-3 Si-Trim gear driven centrifugal supercharger features an internal lubrication reservoir that does not require a connection between the engine oil pan and the compressor gear case... no oil line.
• The V-3 includes remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.
• Technologically advanced, high-efficiency impeller and housing design developed in our SAE J1723 compliant supercharger test cell. Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.
• Integrated dual-pass air/water charge cooler configuration features a closed loop water cooling system with a stand-alone pump, tank and front mounted heat exchanger.
• High-flow bypass valve provides for surge-free compressor operation.
• Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps.
• Billet aluminum mounting bracketry for "factory installed" appearance and rigidity.
• Complete bolt-on system including all necessary belts, pulleys and reusable high-flow air filter.

Optional Accessories
Maxflow Race Bypass Valve Upgrade for 2005-2010 5.7/6.1L HEMI

Installation
Installation time is rated at 12-14 hours.

Installation Manual
2005-2008 5.7L Hemi Cars (Charger, Challenger, Magnum, 300C)

CARB Compliance
Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.

Tuner Kits and Supercharger Options
Tuner kits are the same as complete systems except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer. Vortech has supercharger options for various types of racing or boost level. For continued use, such as road racing, the V-2 series superchargers share the engine's oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call us for complete information on the many upgrades and options available.
