Paxton

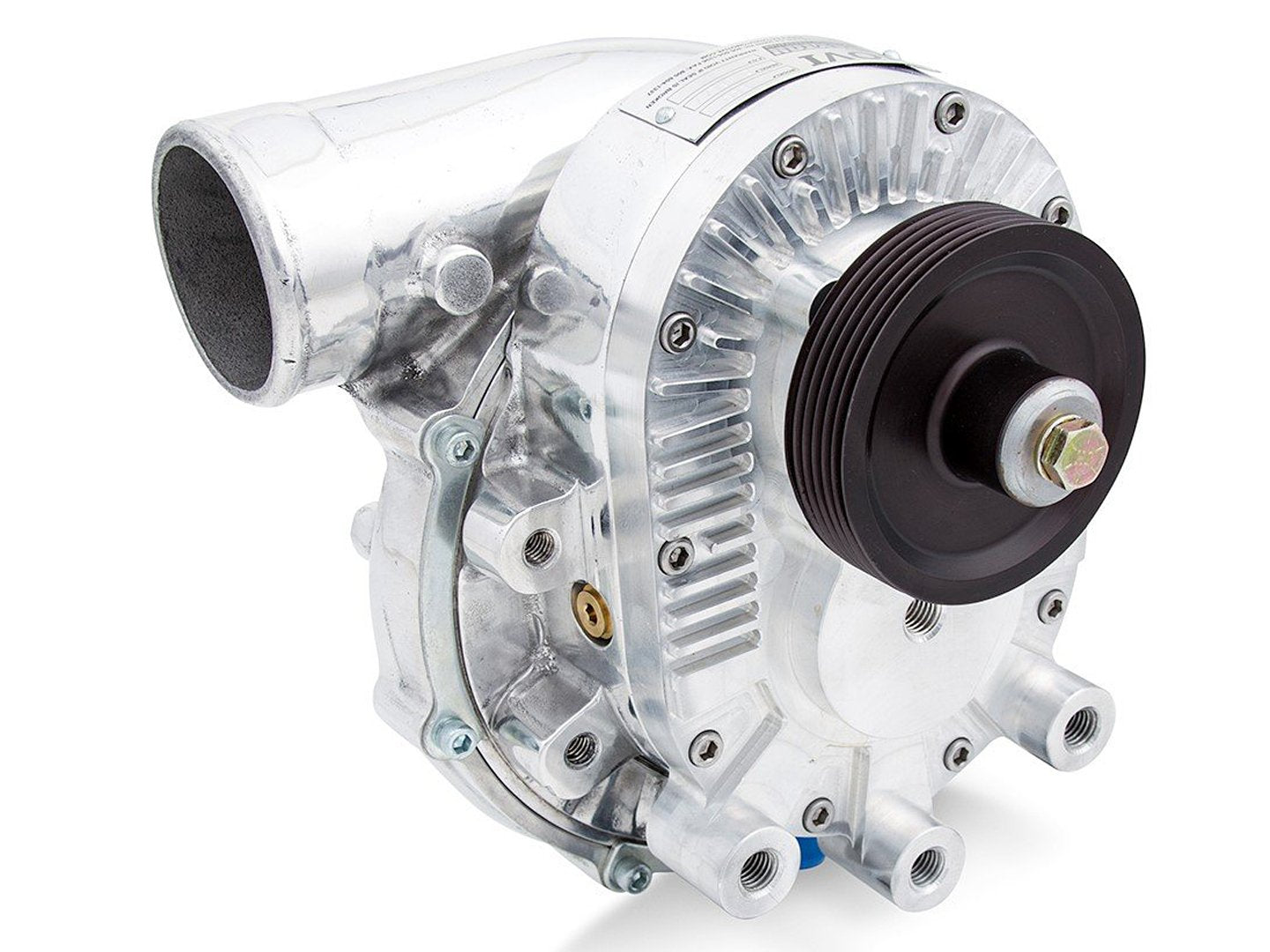

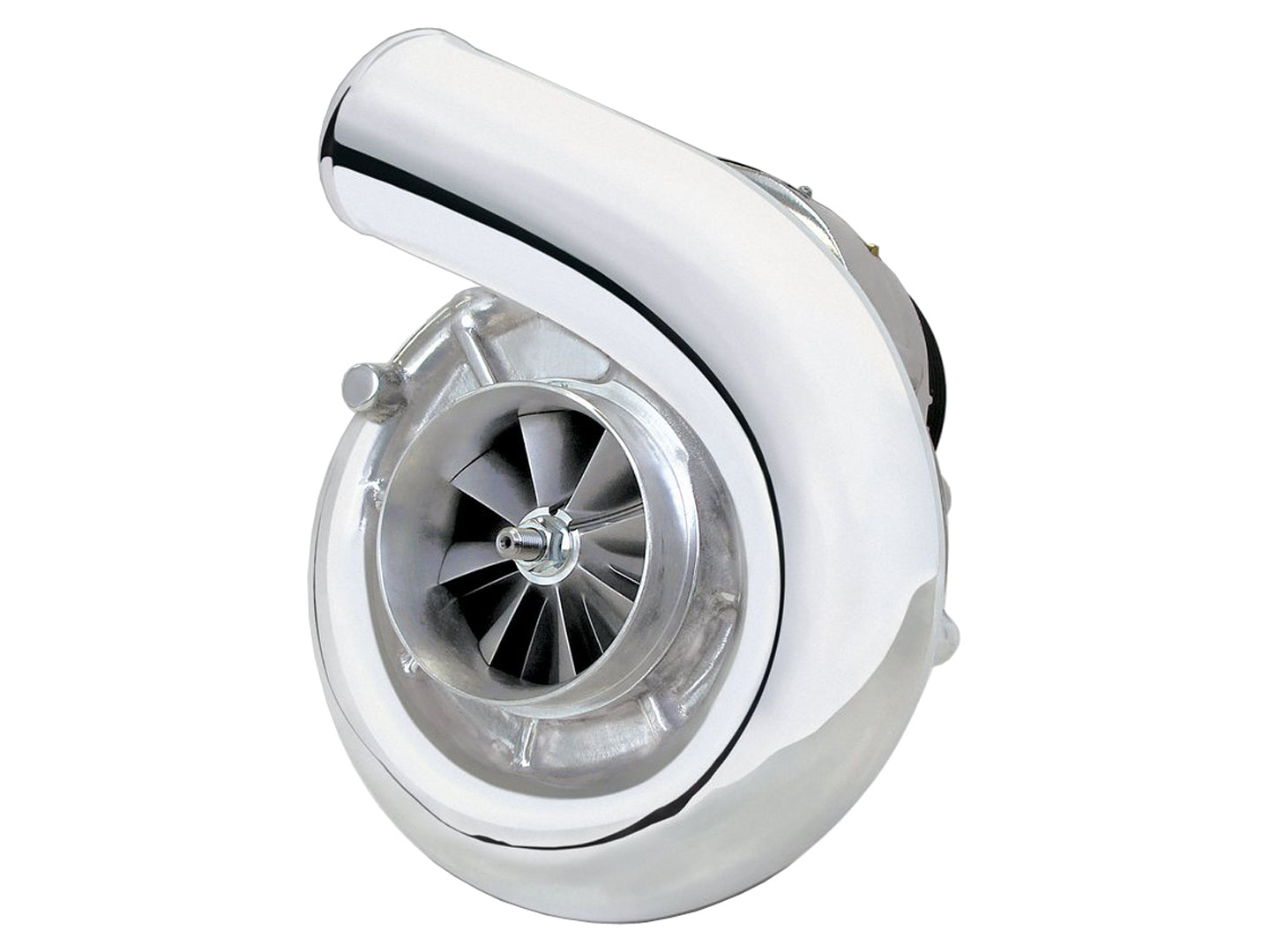

Paxton Novi 1200 Supercharger
$POA
POA - Please contact us for pricing.
Equivalent to the Vortech V-2 Si model, the NOVI 1200 with its highly advanced computer designed gears features an optimized helical profile which allows for quieter operation while providing superior performance. All NOVI 1200 units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for Vortech V-1, V-2, or V-3 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1200 Supercharger is capable of up to 775HP on modified vehicles. Extraordinary 78% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.
- Helical cut gear profile with SQ technology
- Near silent operation
- Available with straight or curved discharge
- Does not include drive pulley
- 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
Performance Specs
-
Internal Step-Up Ratio: 3.61:1
Max Speed: 52,000 RPM
Max Boost: 22 PSI
Max Flow: 1,150 CFM
Max Power: 775 HP
Peak Efficiency: 78%
Performance specs apply to units equipped with standard gearcase.
Dimensions
-
Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1
