Chris Alston’s Chassisworks
CDS Single Supercharger Gear Drive (Vertical)
Quantity:
Pickup available at 20 Verrall Crescent
Usually ready in 2-4 days
CDS Single Supercharger Gear Drive (Vertical)
20 Verrall Crescent
Pickup available, usually ready in 2-4 days
20 Verrall Crescent
Berri SA 5343
Australia
Features
- Models available for most Vortech, Procharger and Paxton Superchargers.
- Engine Applications Include:
- Small Block Chev
- Big Block Chev
- LS Series (Standard, LSX, Wareagle, RHS and Dart Billet Blocks)
- Ford Small Block
- Ford Big Block 429-460
- Ford Modular 4.6L & 5.4L
- Pontiac Aftermarket Block
- Studebaker 289 V8
- Mopar Small Block and Big Block
- BAE Hemi
- MBR 8.3L Hemi
- Broad selection of drive ratios.
- Large 1-3/8" wide quick change gear set.

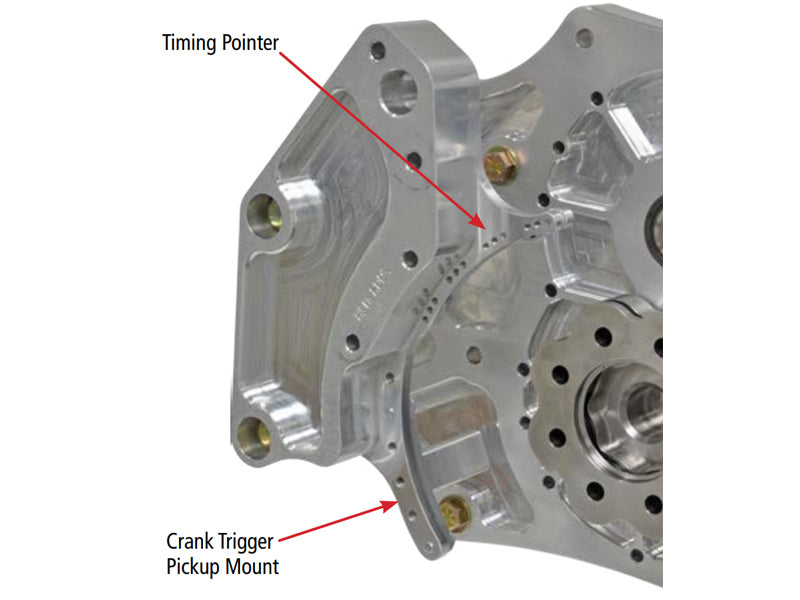

- Timing pointer built in.
- Crank trigger pick-up mount built in.

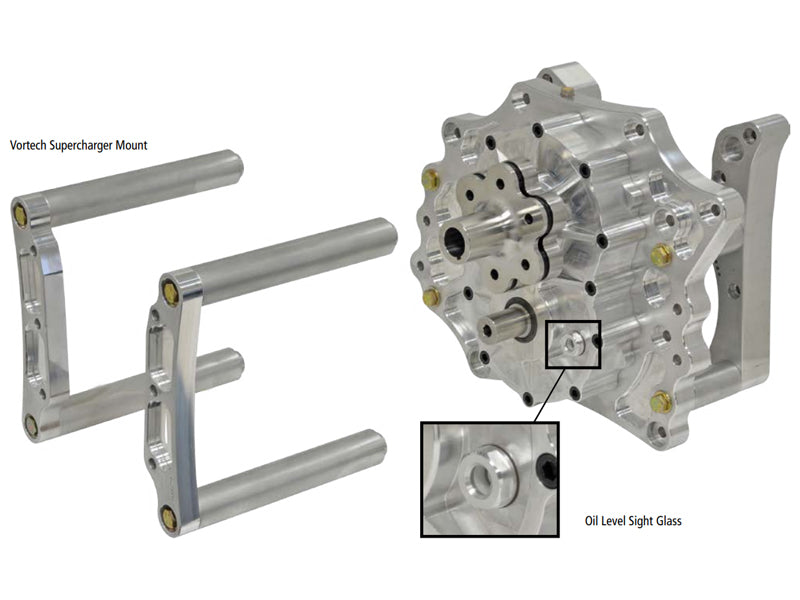

- Oil level sight glass.
- Aluminium Blower and Crankshaft Hubs (Optional high-strength, heat-treated stainless steel)
- Two piece case with alignment pins.
- Scalloped gearbox and mount plates to remove excess material
- Pocket-milled in low stress areas to reduce weight.

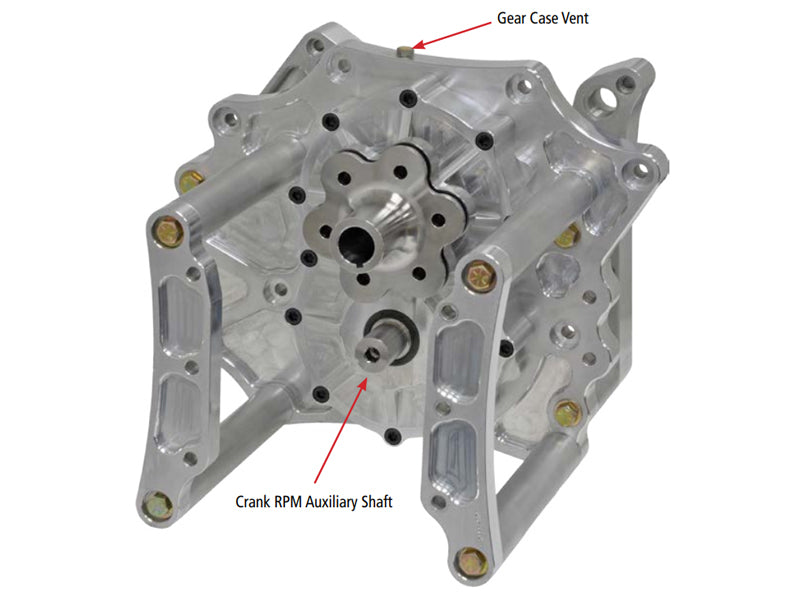

- Multiple auxiliary shafts provided to drive additional accessories (crankshaft RPM and blower RPM shafts).
- Accessory drive options also available.
Drive Hub Bushings
The drive hubs between the crankshaft, gear drive and supercharger use high-density urethane coupler busings (available in multiple durometers) to dampen harmonics and extend bearing life.
